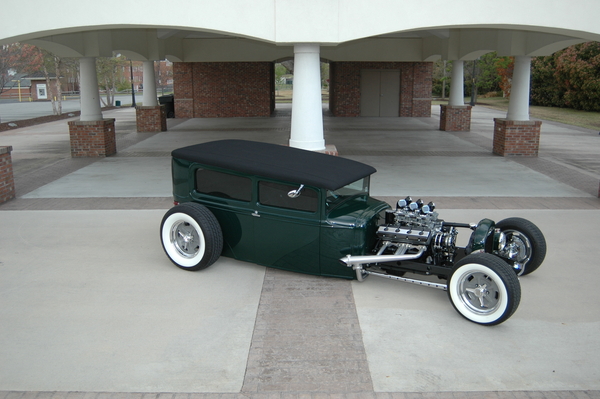

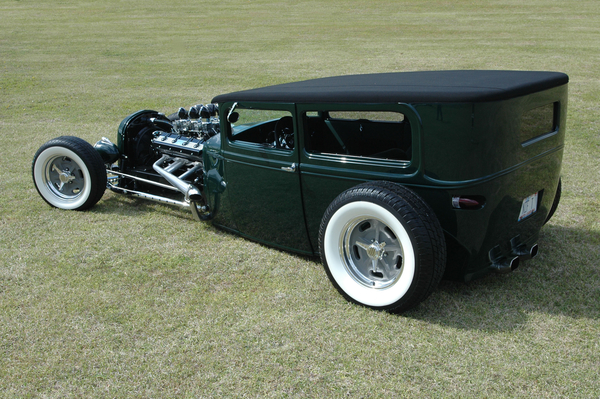

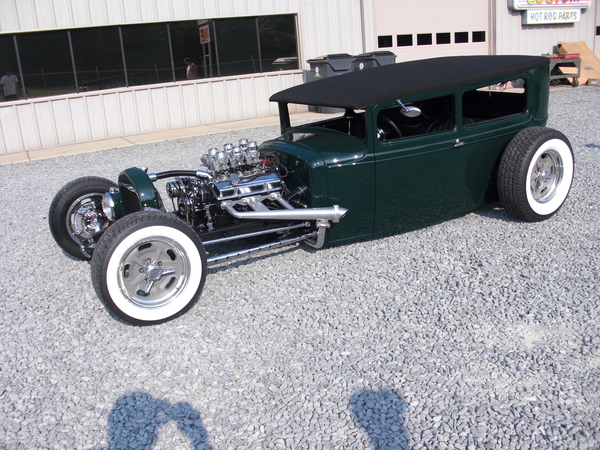

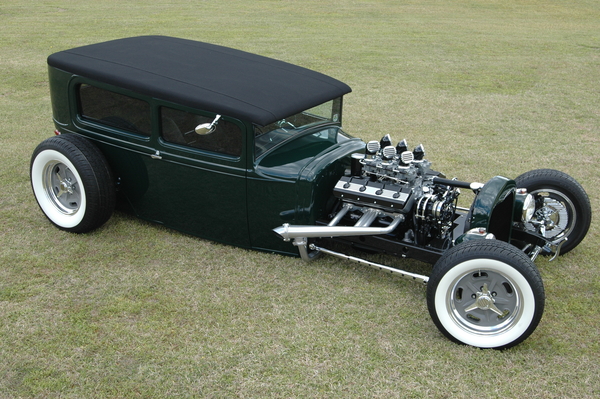

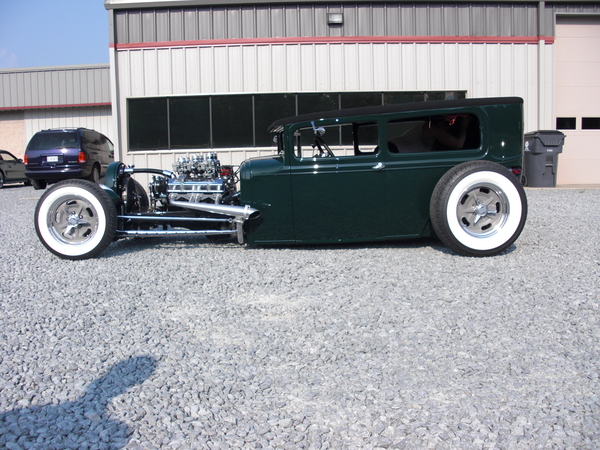

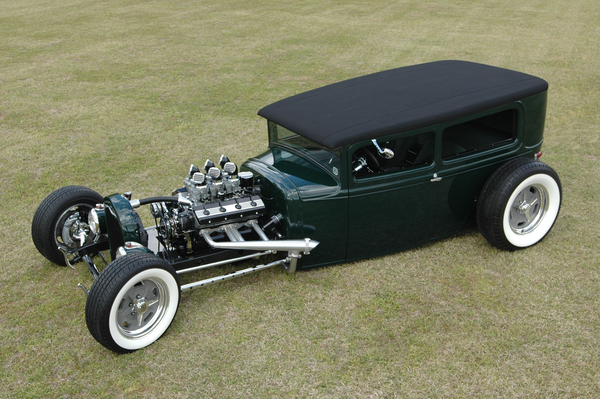

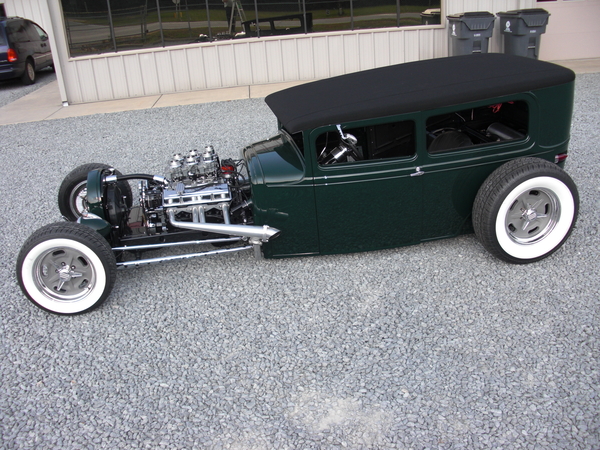

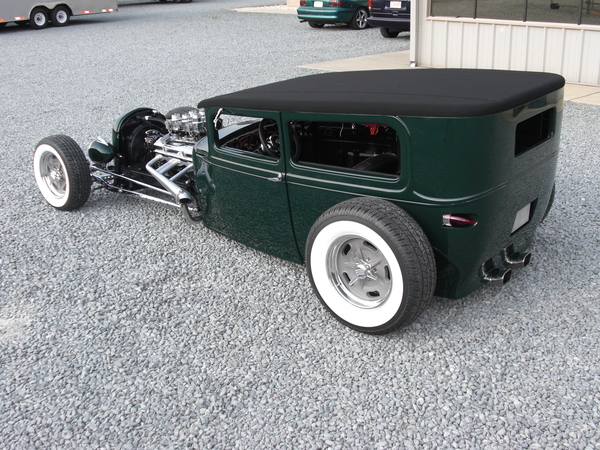

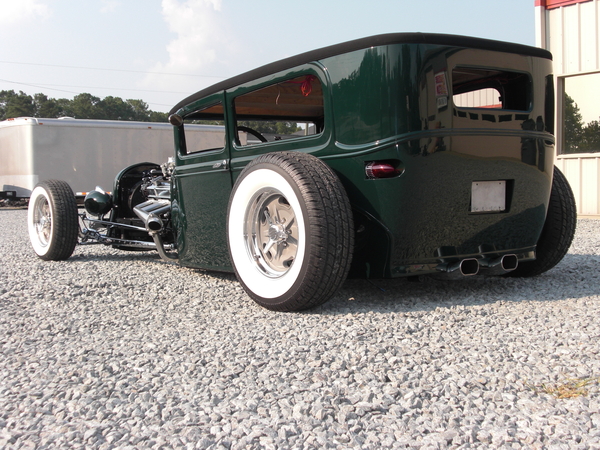

1930 Ford Sedan "Nif T" |
A Rat Rod in a Tuxedo !!!!! |
Owner and Builder: Steve DeMarco, Carolina Custom Hotrod Parts
Body
Frame
Engine
Transmission
Wheels
Tires
Paint
Upholstery
Steering Column
Gauges
Dash
Radiator
Grill Shell
Tail Lights
Steering Box
Headlights
Car of the Year: 2011 Myrtle Beach |
Street Rodder Top-100, 2011 |

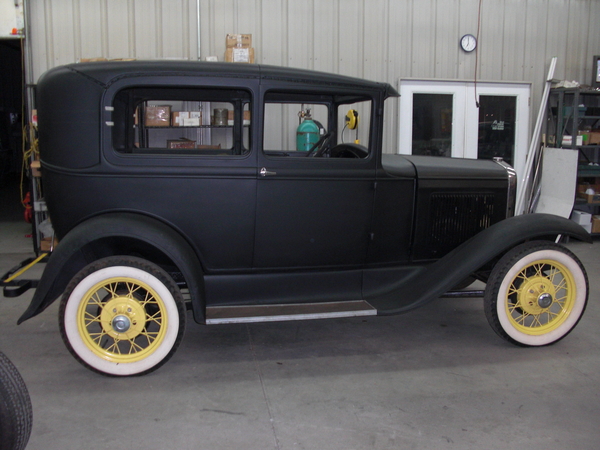

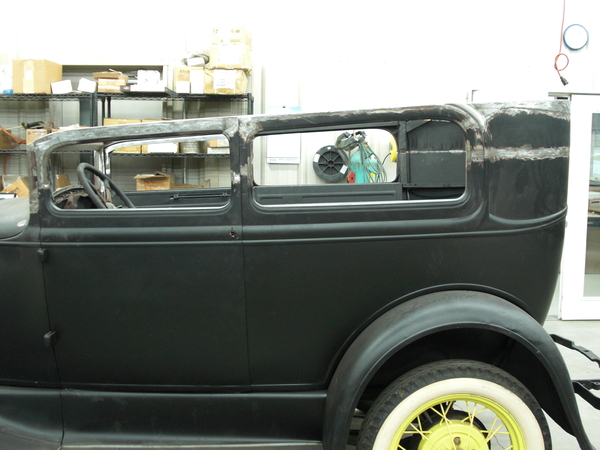

The original car that we started with.
)

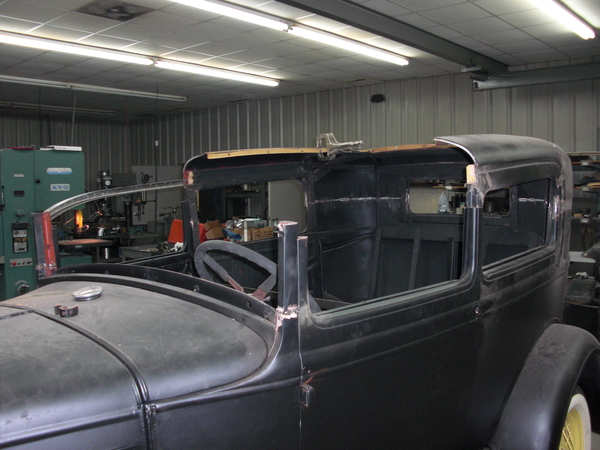

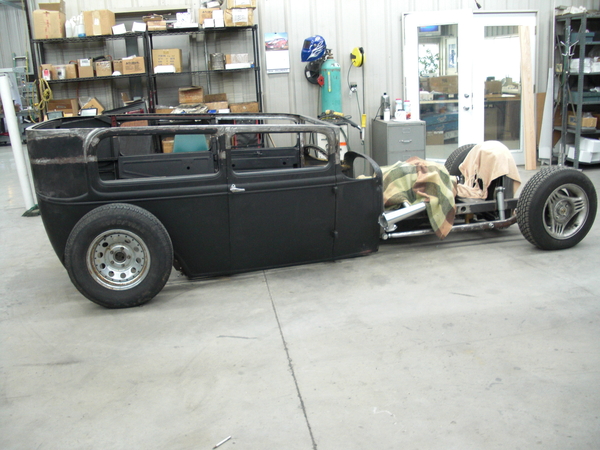

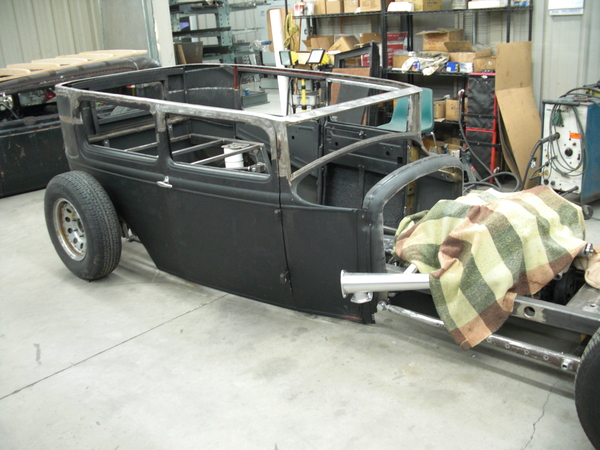

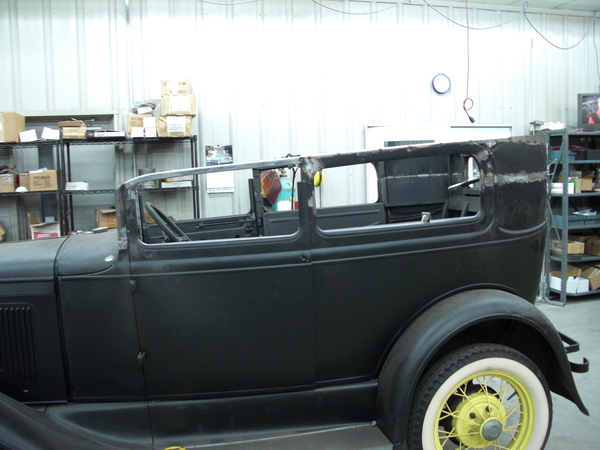

The body was cut and reshaped to resemble a 1927 T sedan, only larger. These

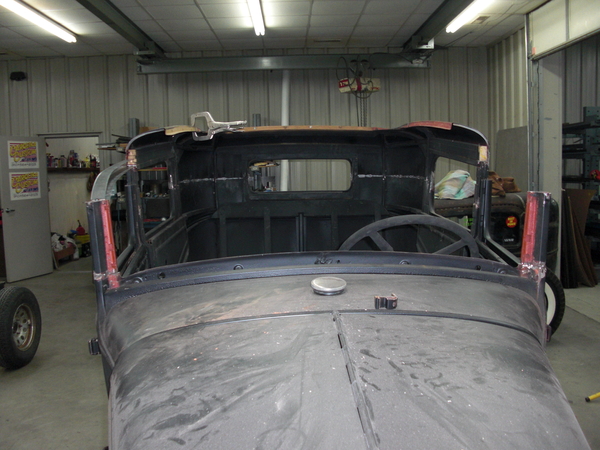

are the pictures of the chop and removal of the roof in preparation for the
fiberglass top to be made. The chop is 3 inches in the rear and 6 inches in the
front. Metal was added at the rear to square the back of the cab to resemble
the T sedan.
)
)
)
)
)
)
)

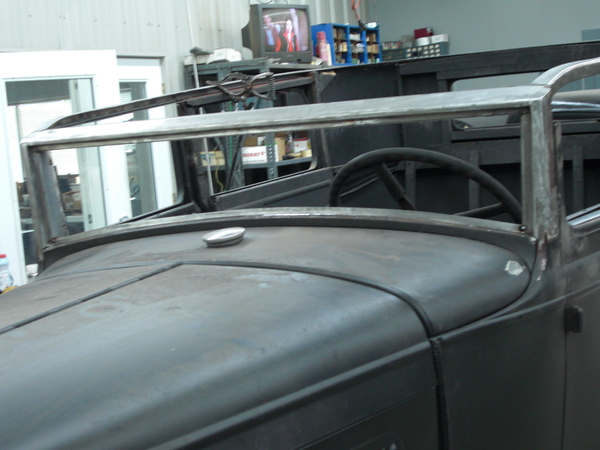

The windshield area was altered to allow for a flushed fit glass instead of a
swing out frame.
)

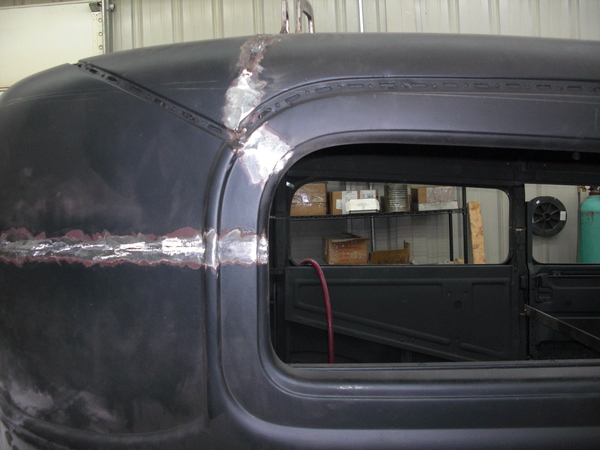

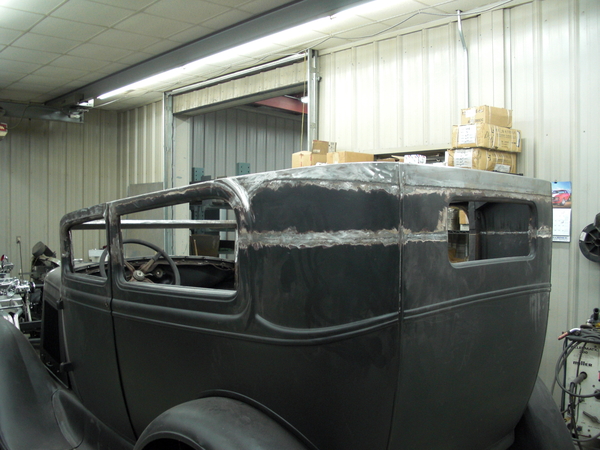

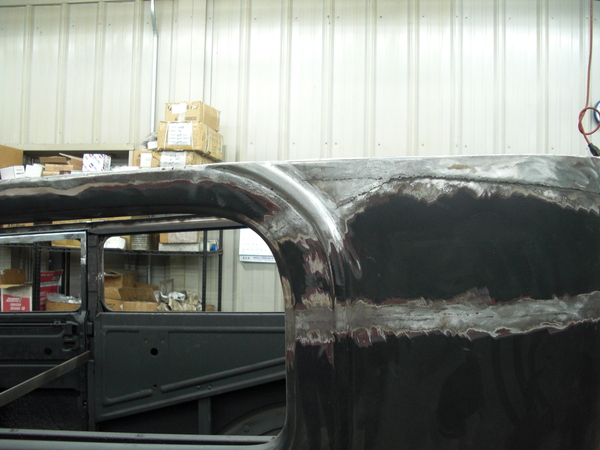

Reshaping the back of the cab
)

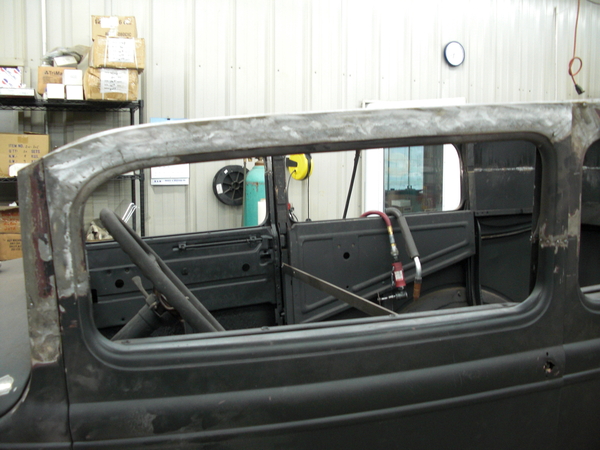

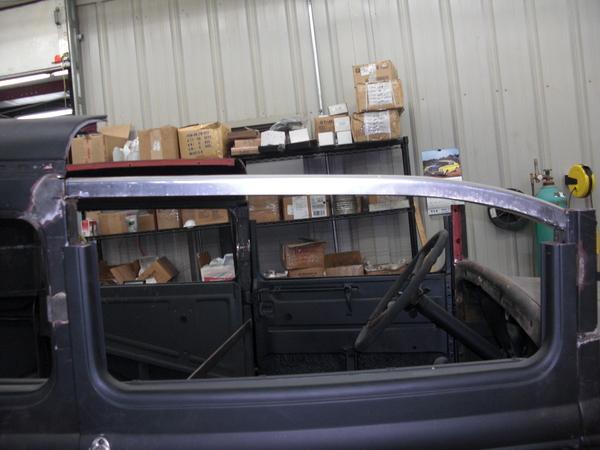

Reshaping the top of the doors
)

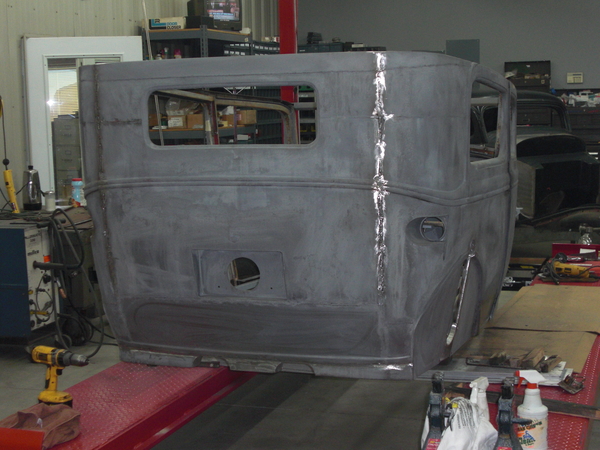

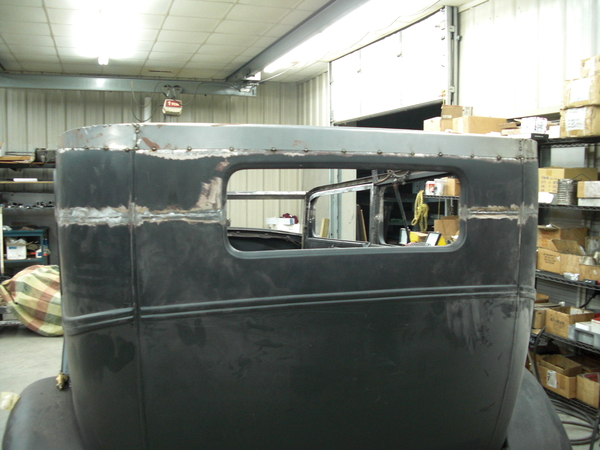

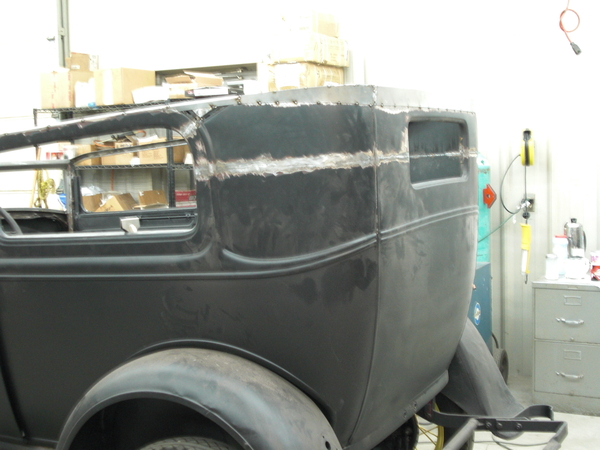

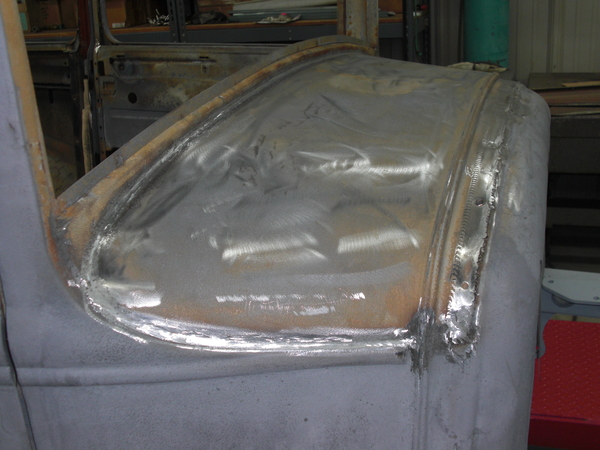

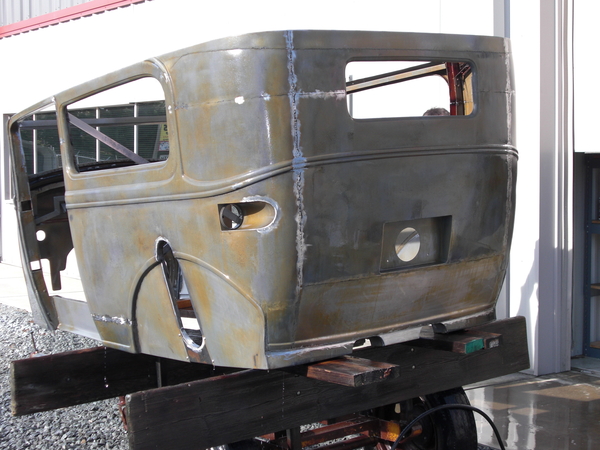

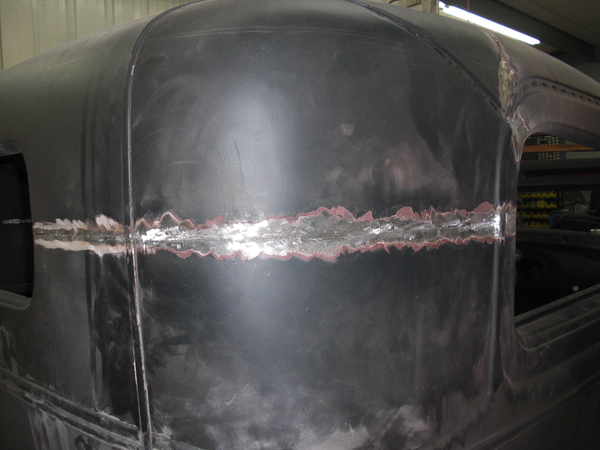

Back of the cab welded and smoothed
)
Rehaping body reveal
)
Top finished
)

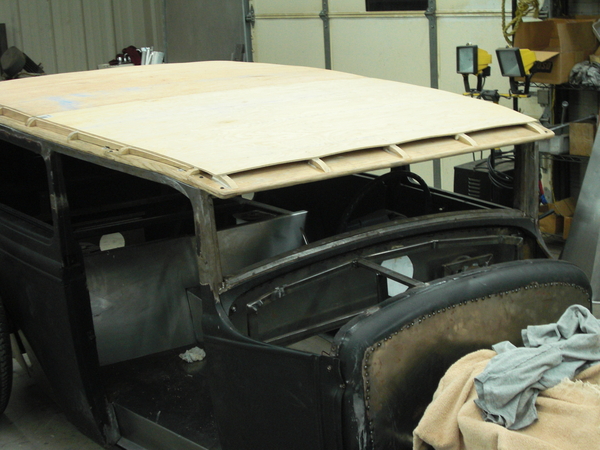

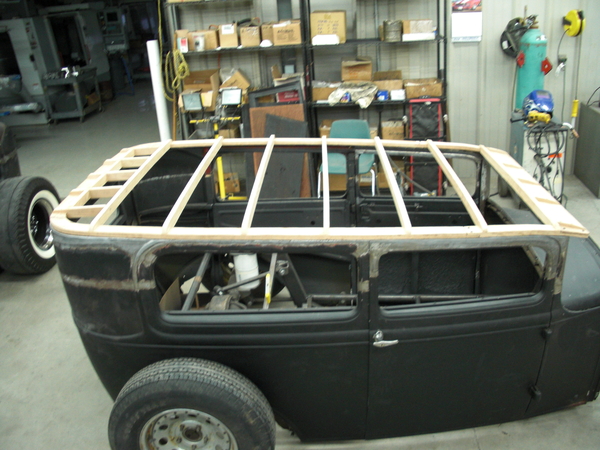

Fabrication of wood framework for the top
)
Old floor and firewall removed
)
)

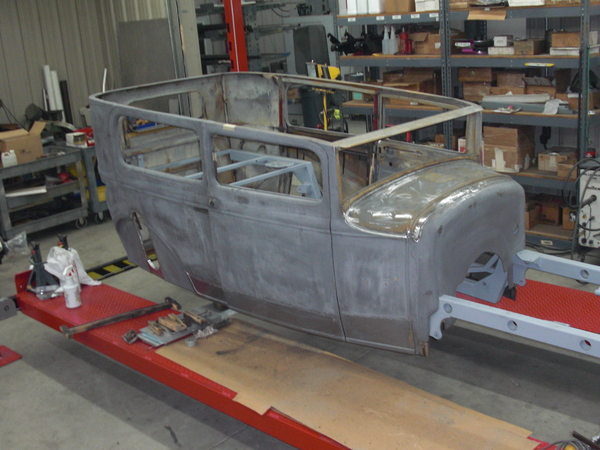

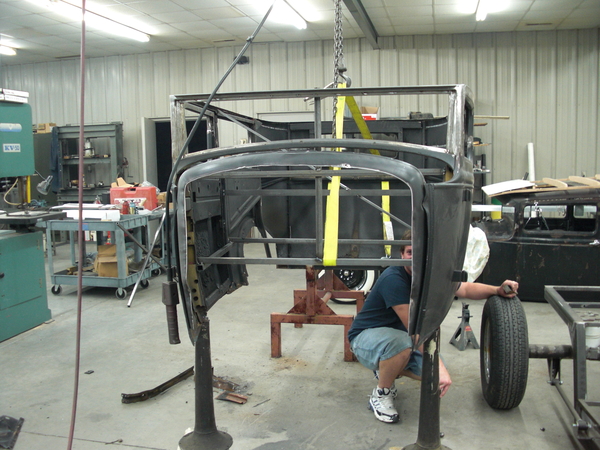

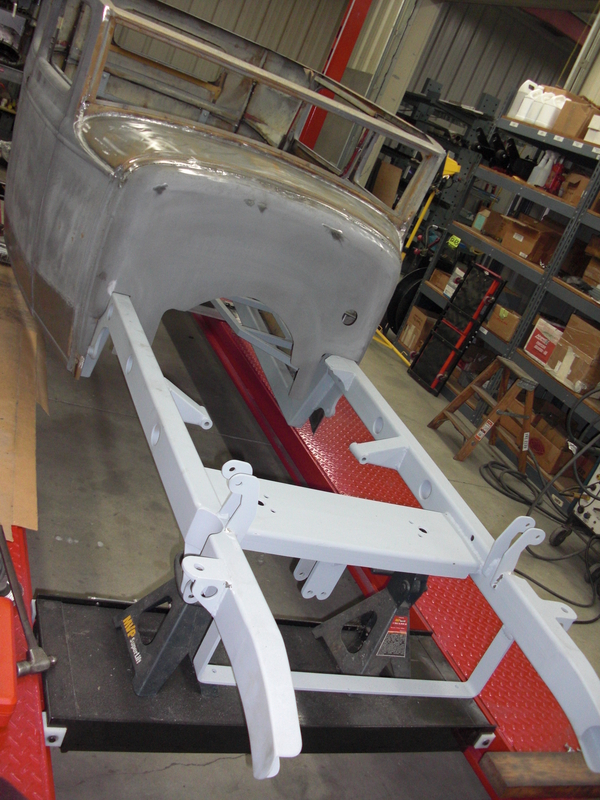

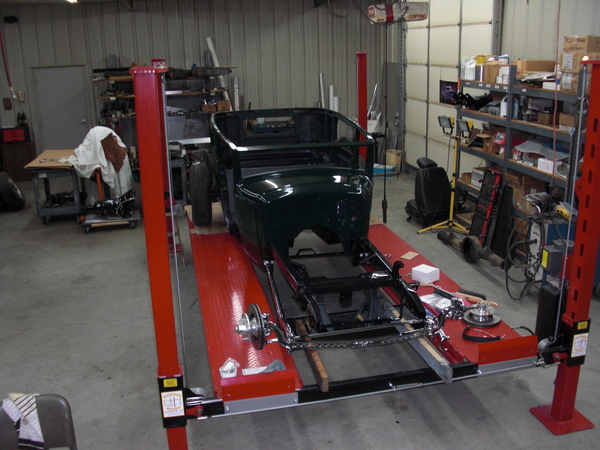

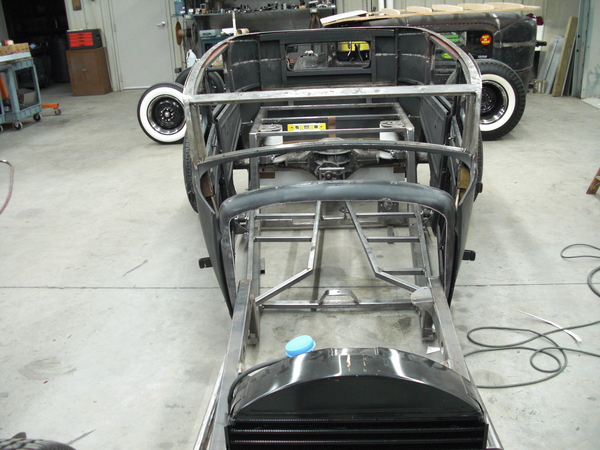

Setting body on the chassis
)
)
)
Locating body for the floor and firewall patterns
)

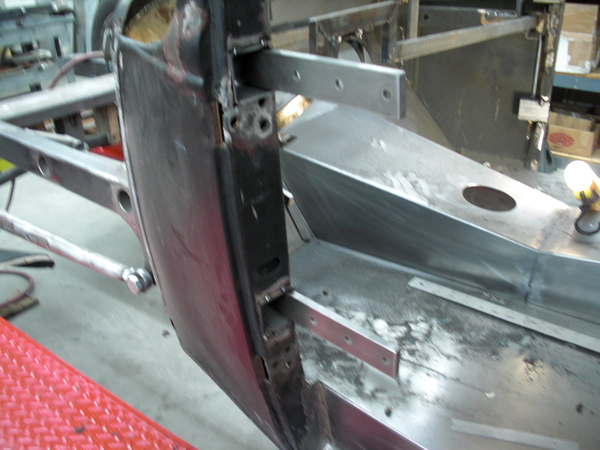

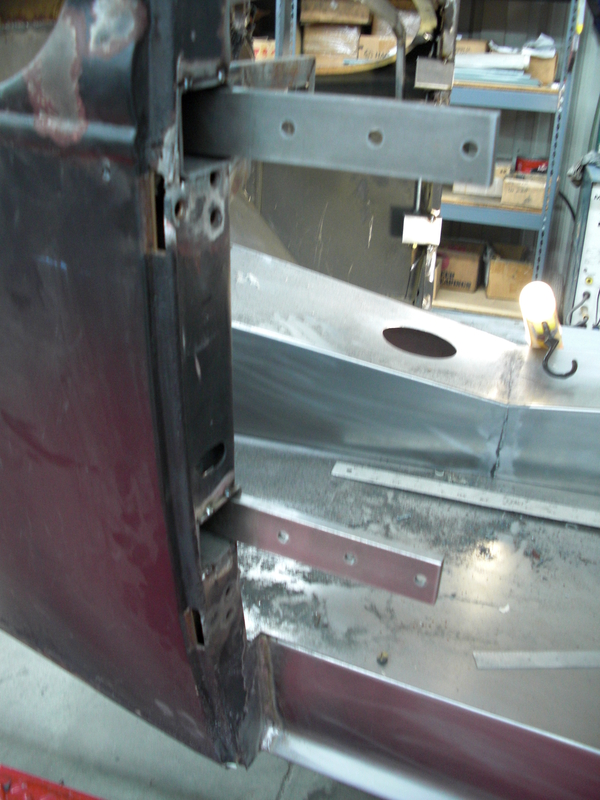

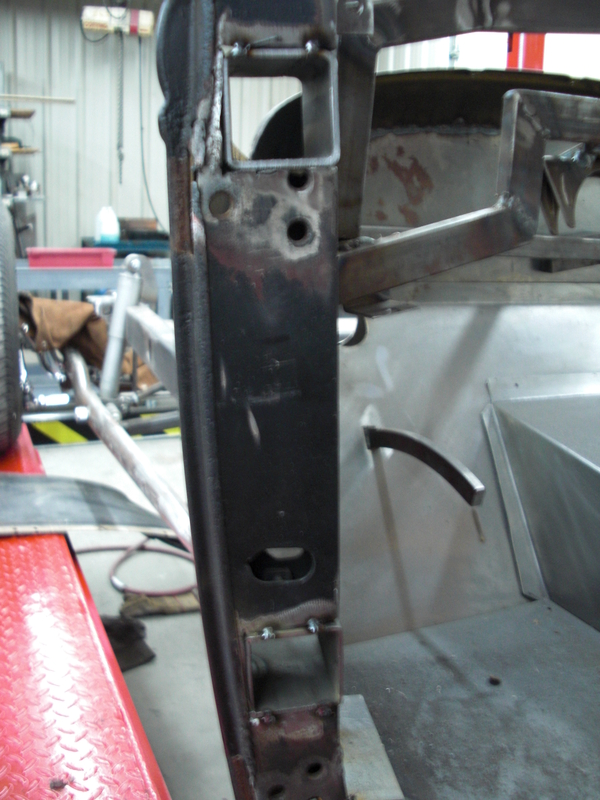

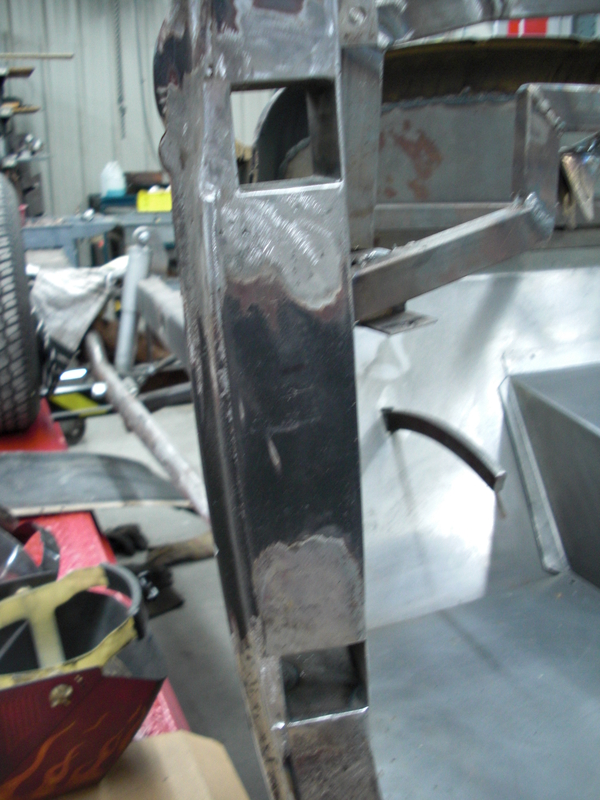

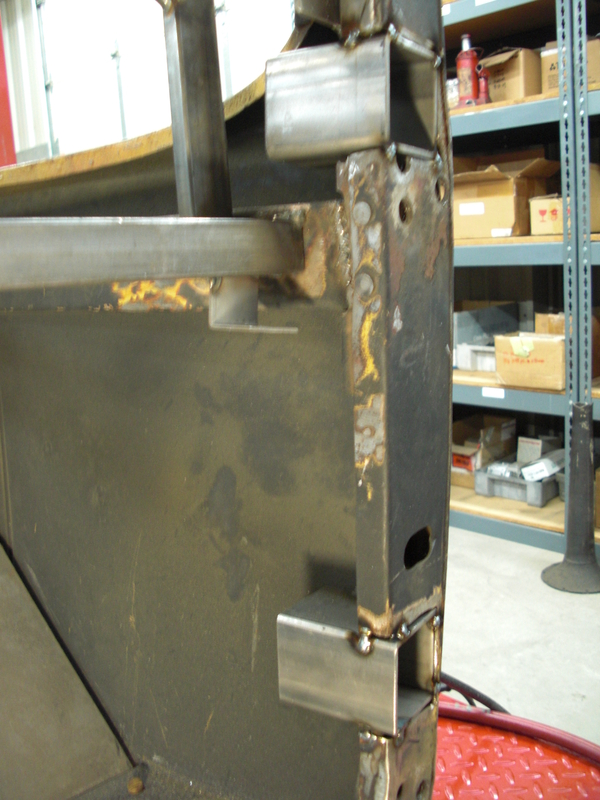

Firewall construction
)

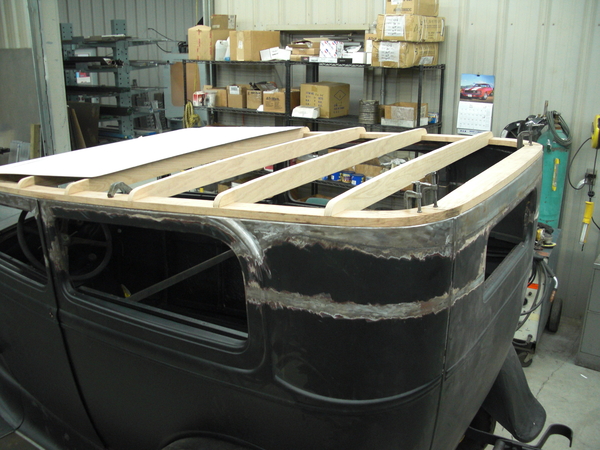

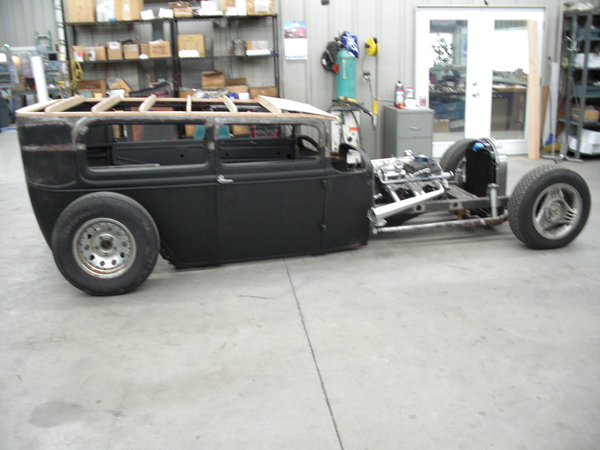

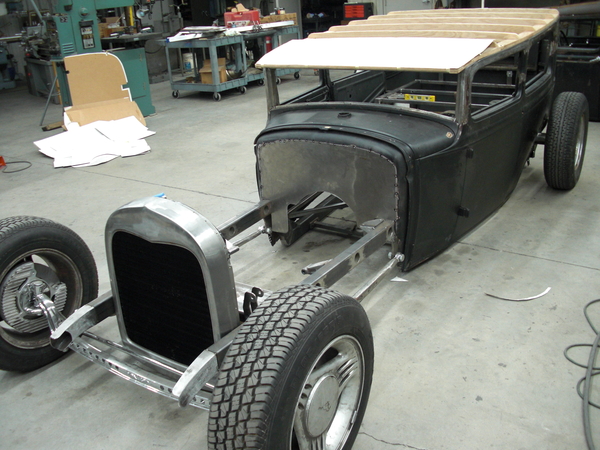

Top bows
)

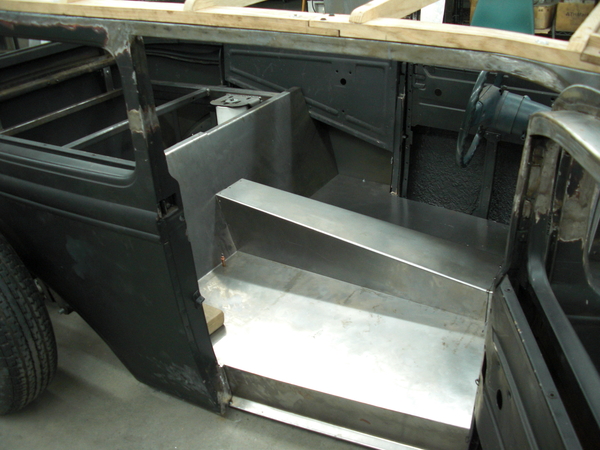

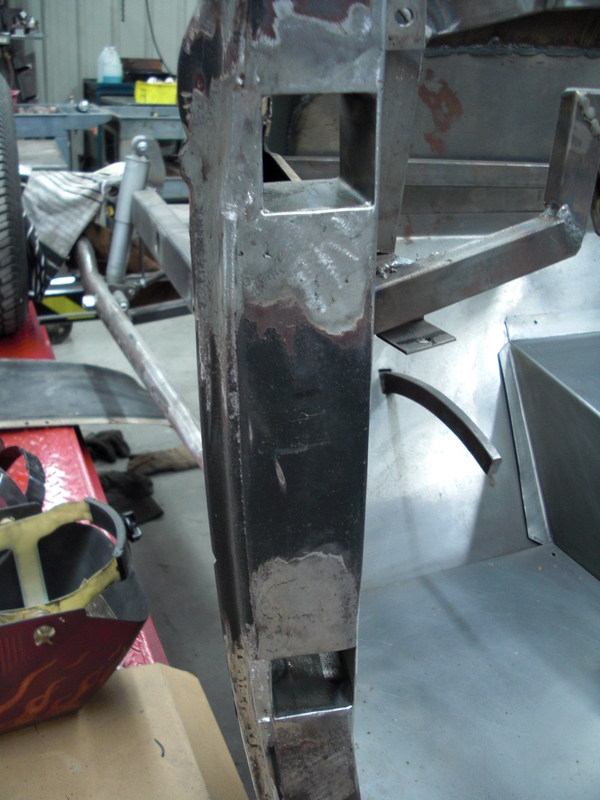

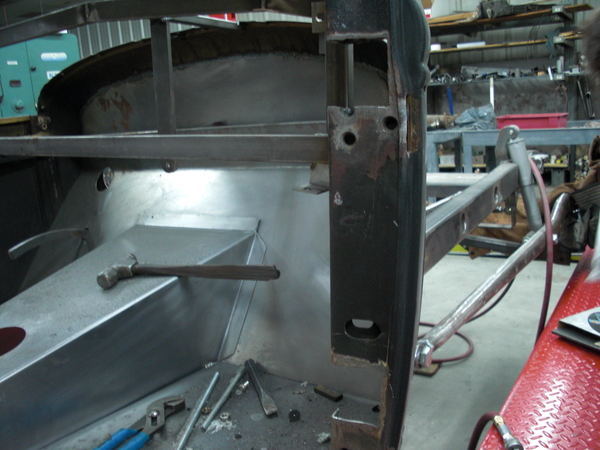

Floor fabrication
)

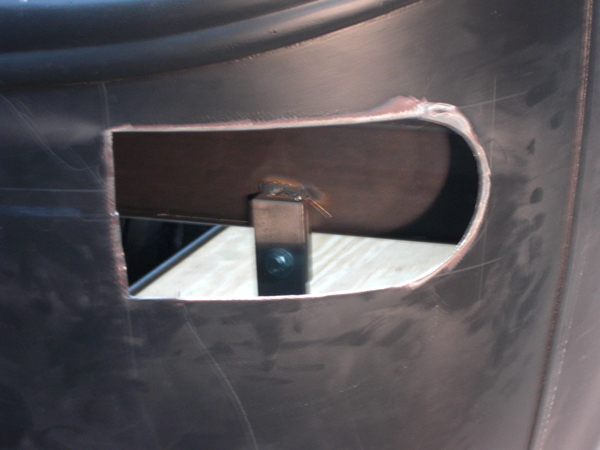

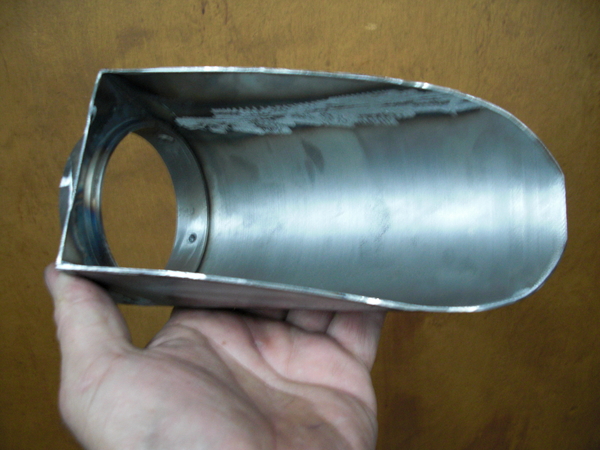

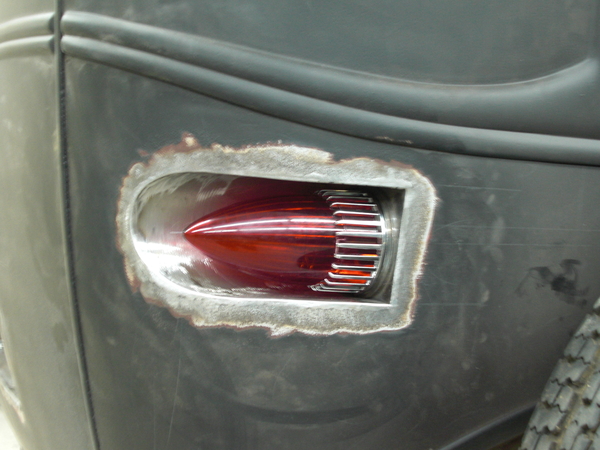

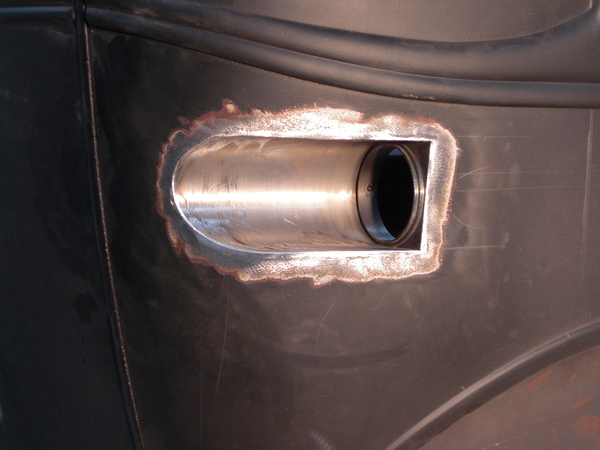

Cutting body and fabrication of housings for 1959 Caddy tail-lights
)
)
)
)

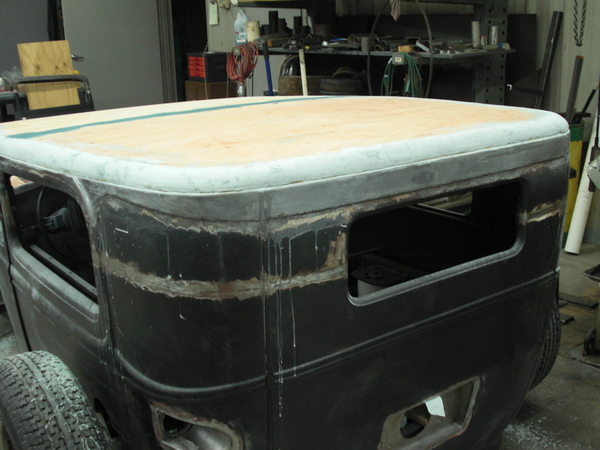

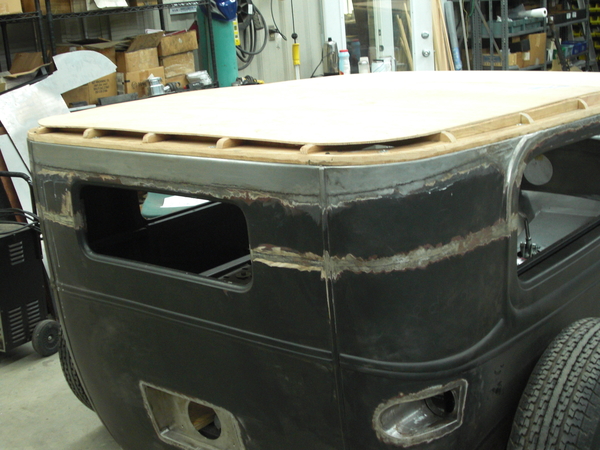

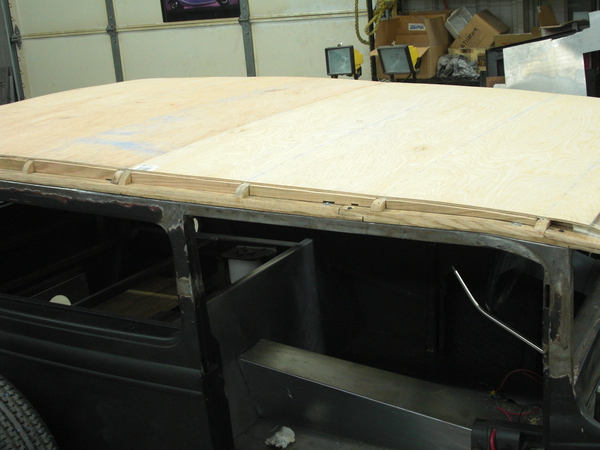

Top fabrication from Oak and fiberglass
)
)
)
)
)
)
)

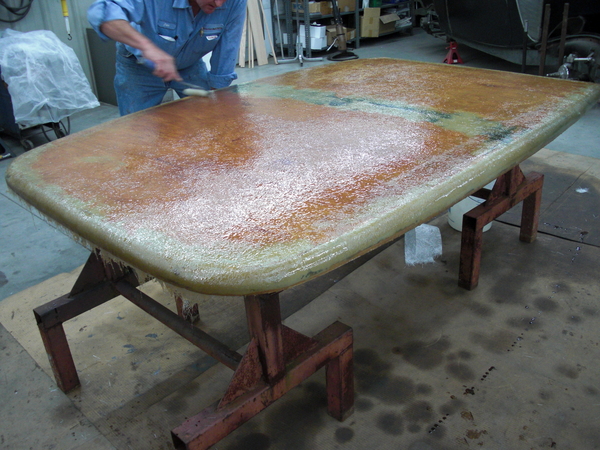

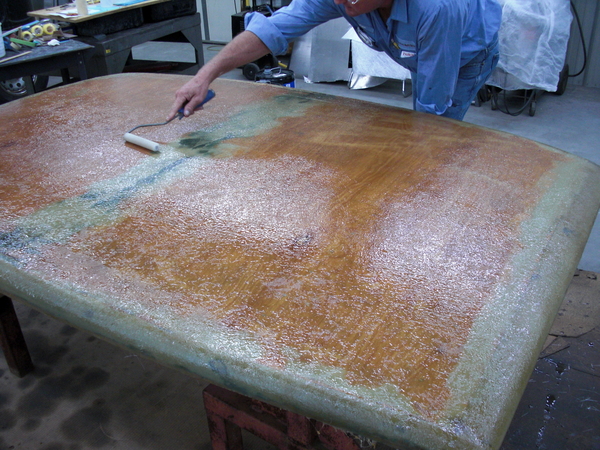

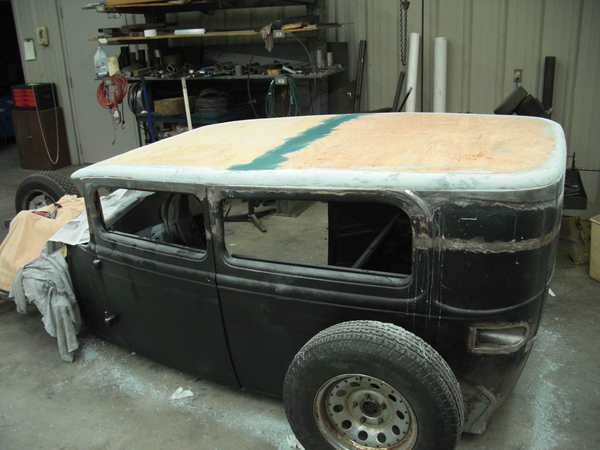

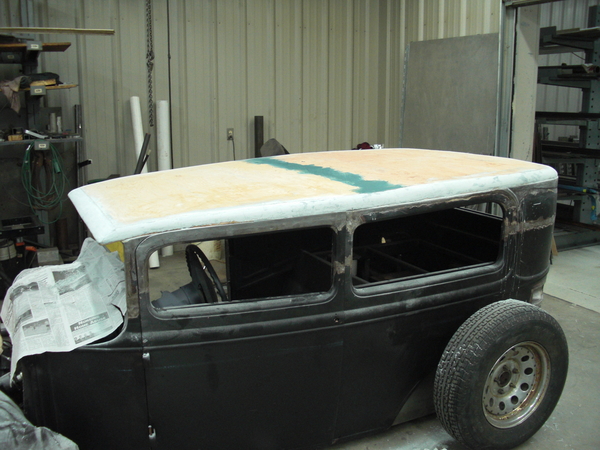

Fiberglassing top
)

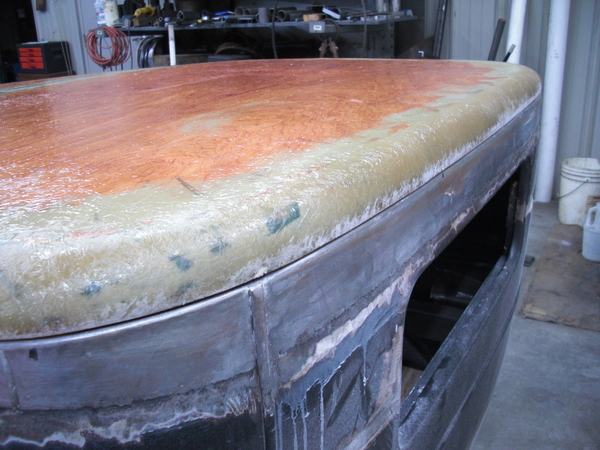

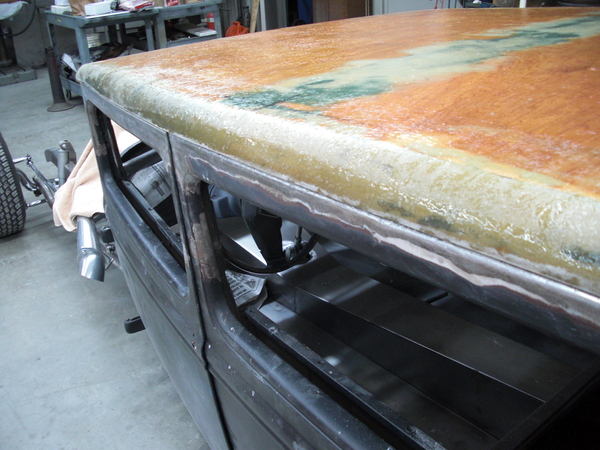

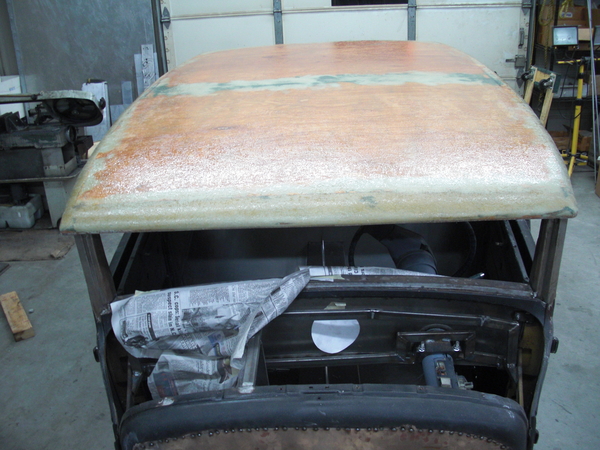

Fitting top to body
)
)
)

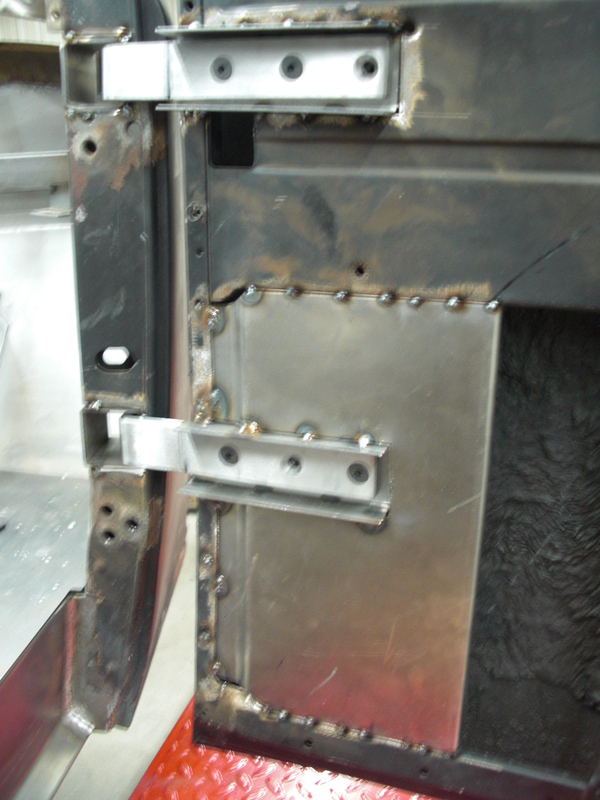

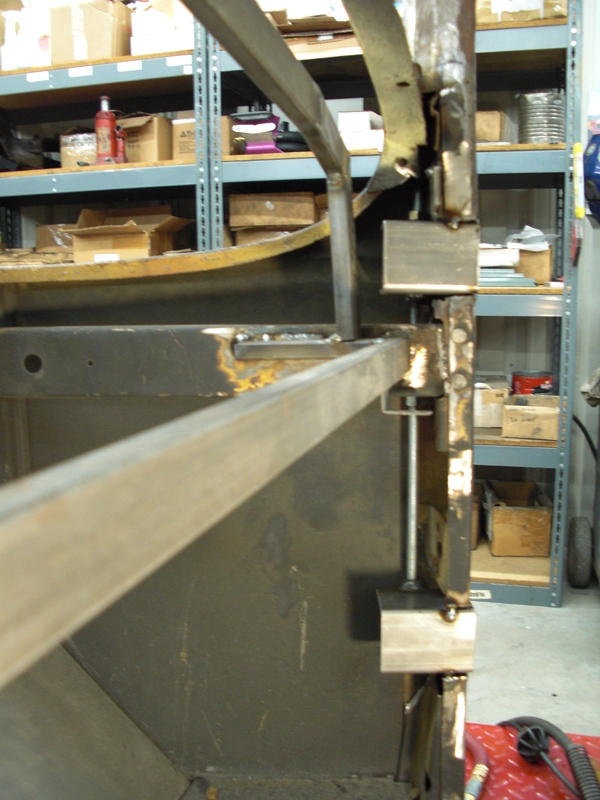

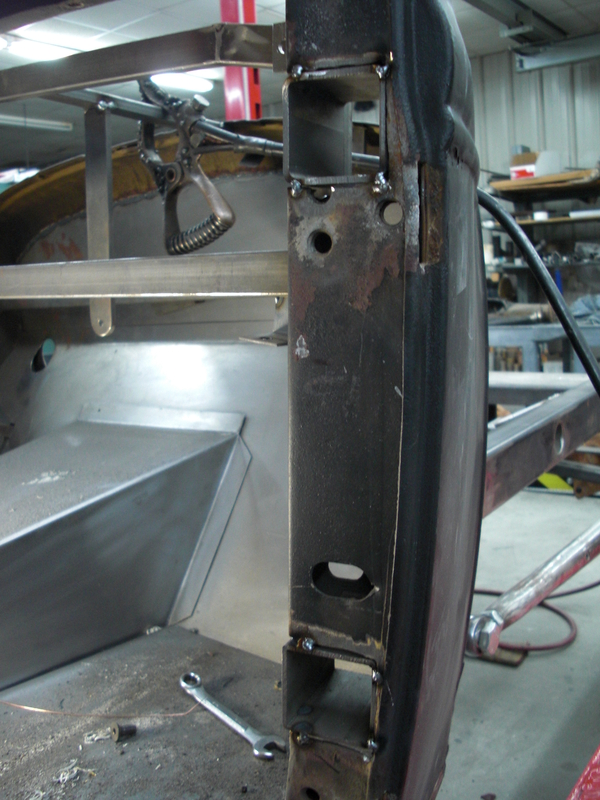

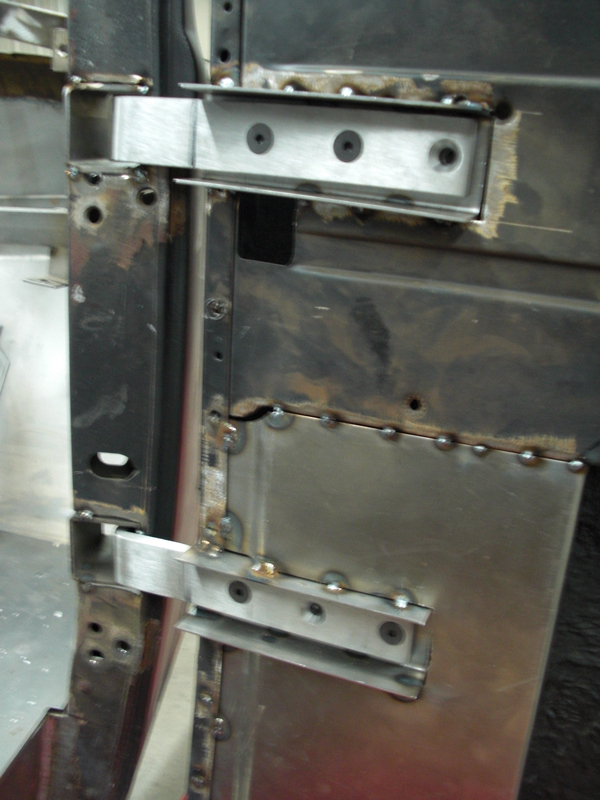

Installing hidden hinges
)
)
)
)
)
)
)
)
)
)
)
)
)

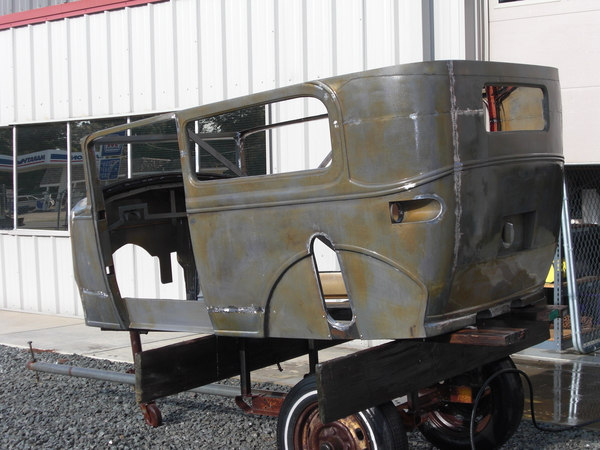

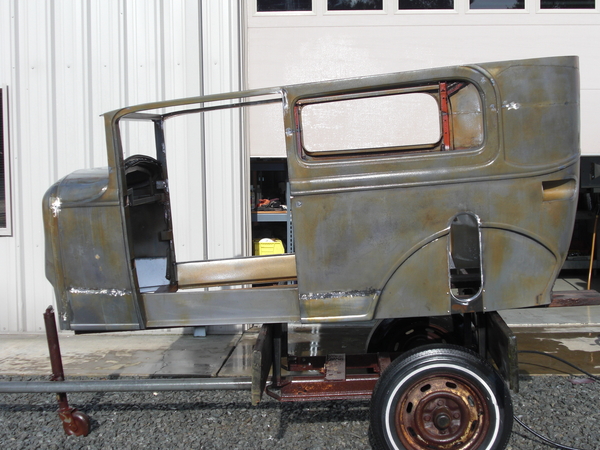

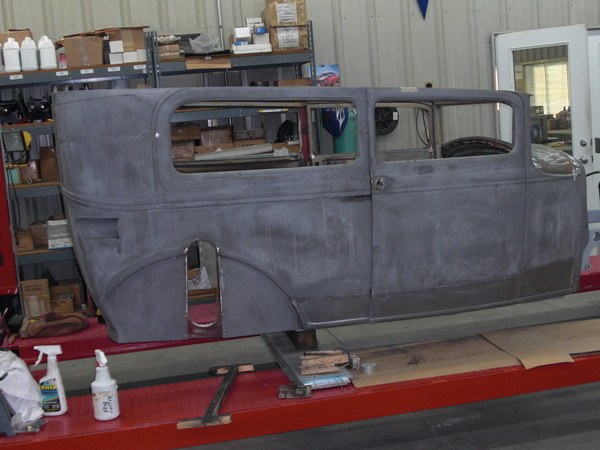

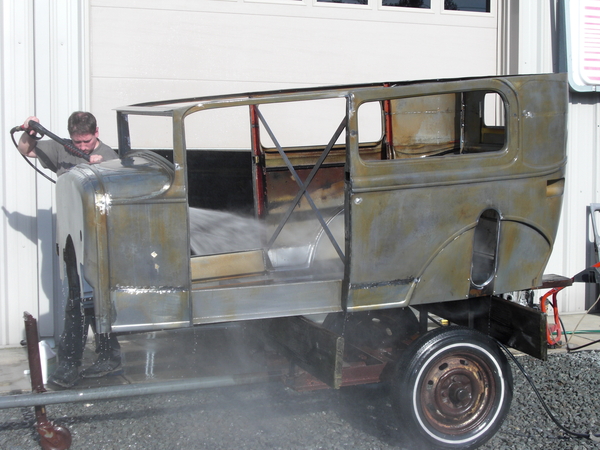

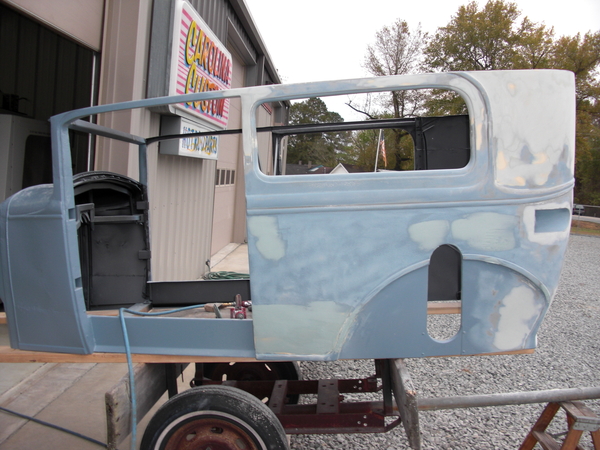

Body after media blasting and panel repair
)
)
)

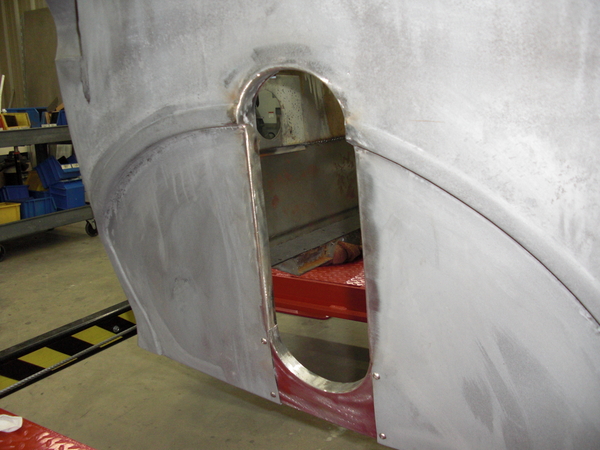

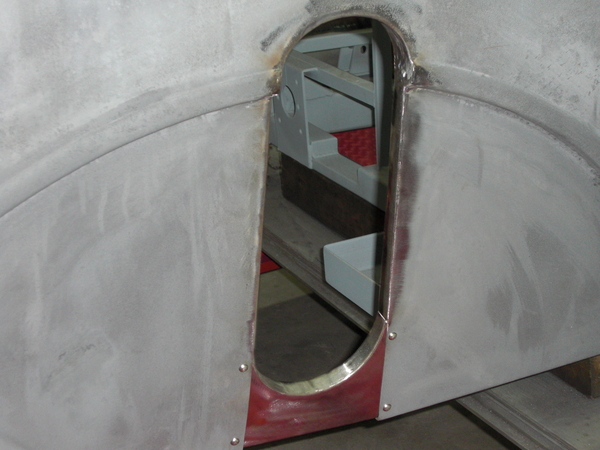

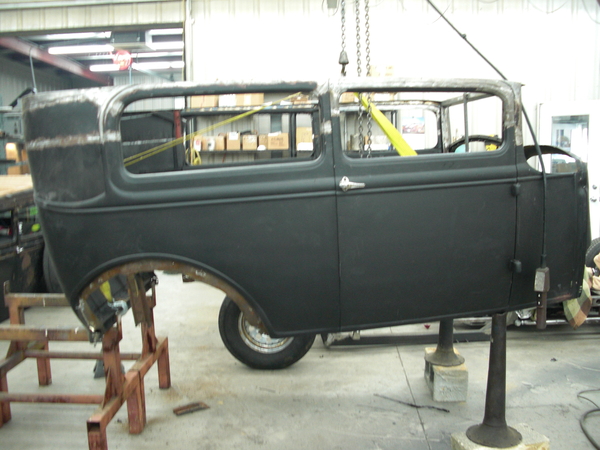

Wheel well cutouts
)
)
Welding in and smoothing front cowl top
)

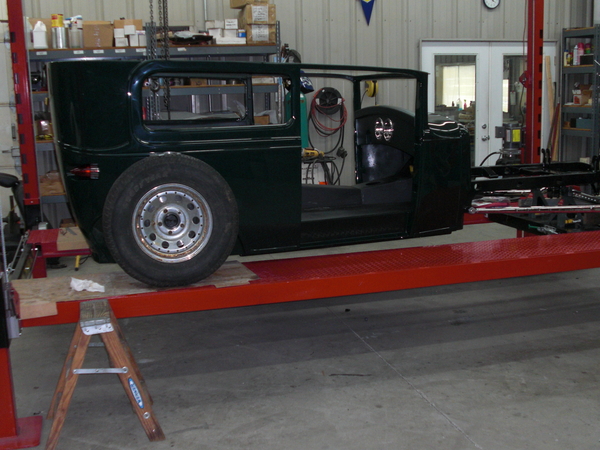

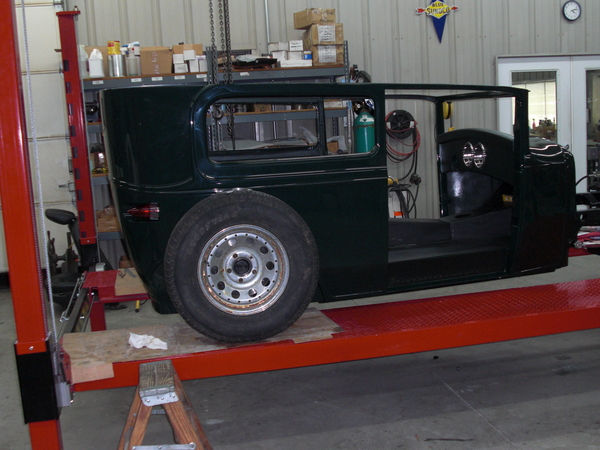

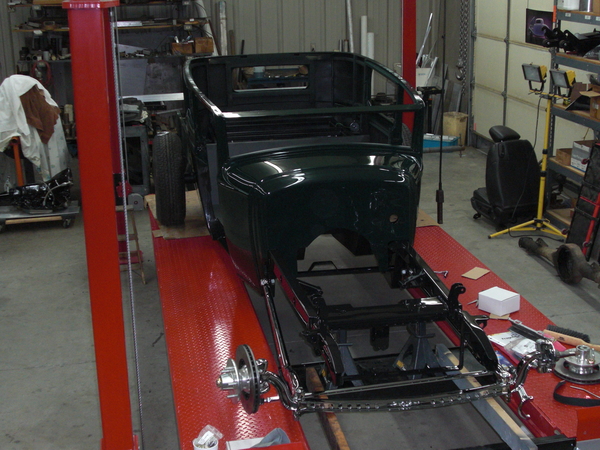

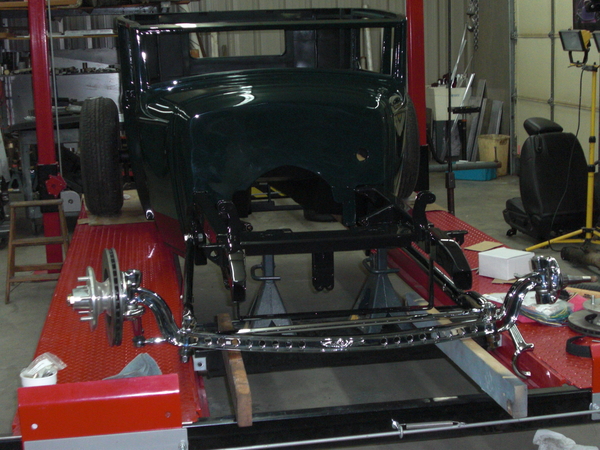

Body fitting back onto the frame
)
)
Treating the body with metal prep
)
)
)
)
Body work
)

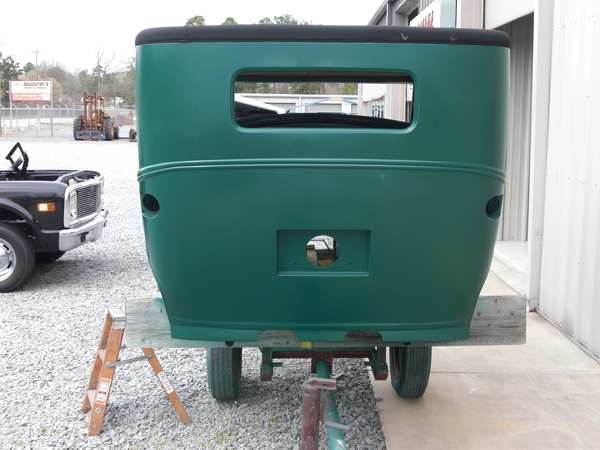

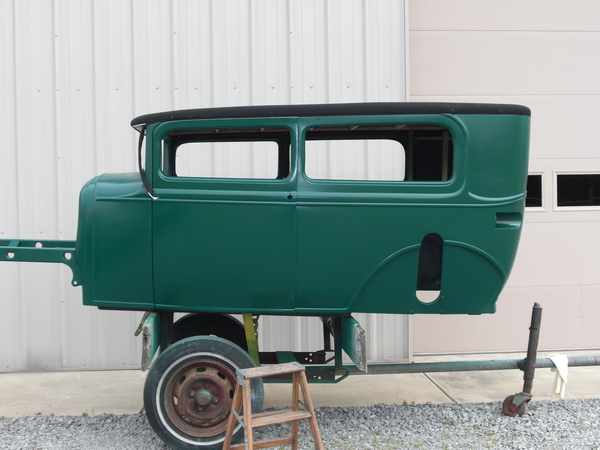

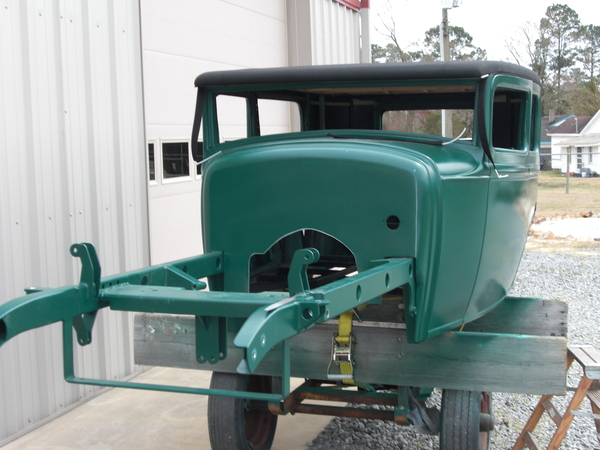

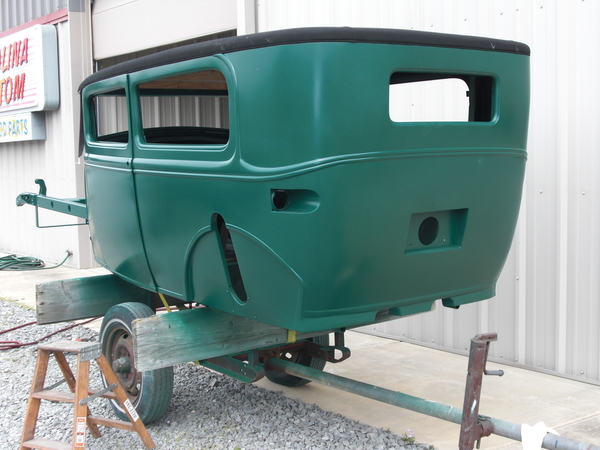

After primer and sealer
)
)
)
)
Pictures of assembly
)
)
)
)
)
)
)
)
)

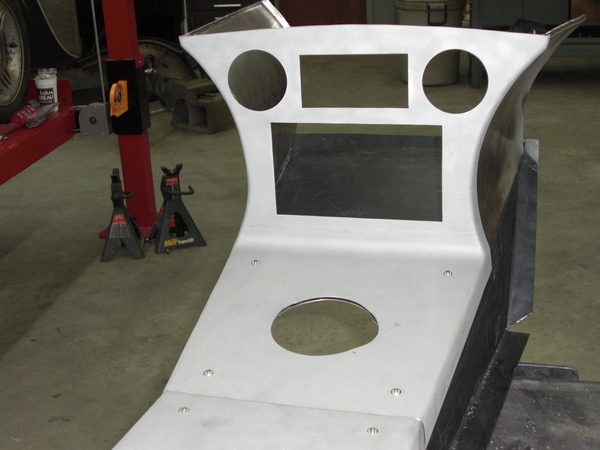

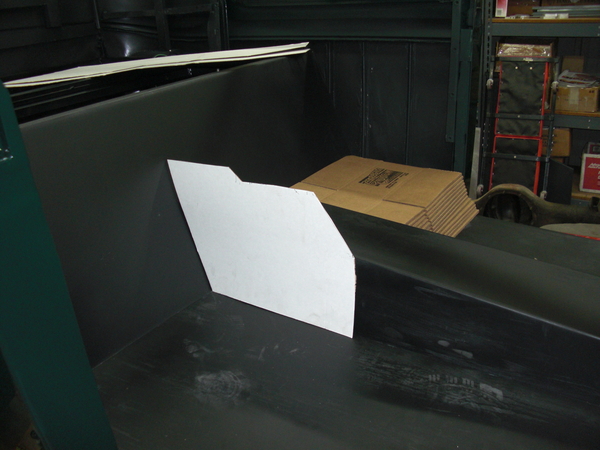

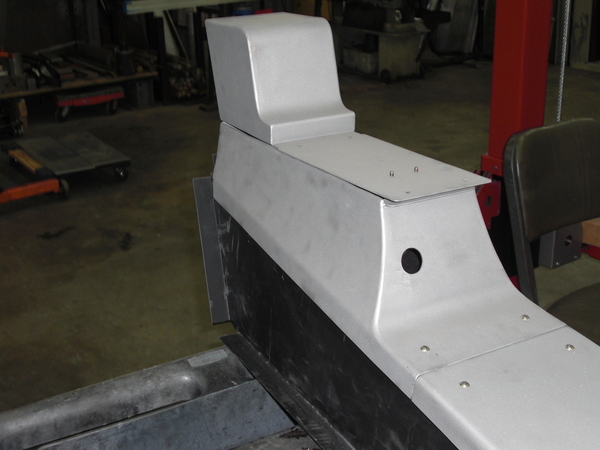

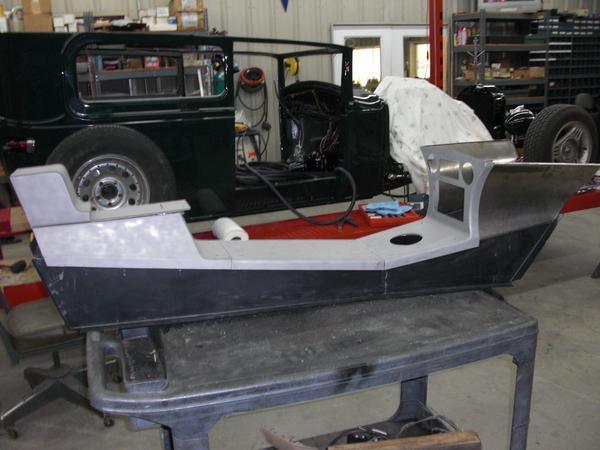

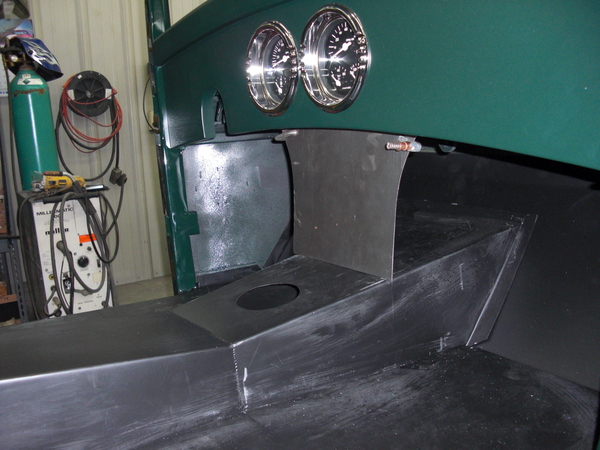

Console fabrication
)
)
)

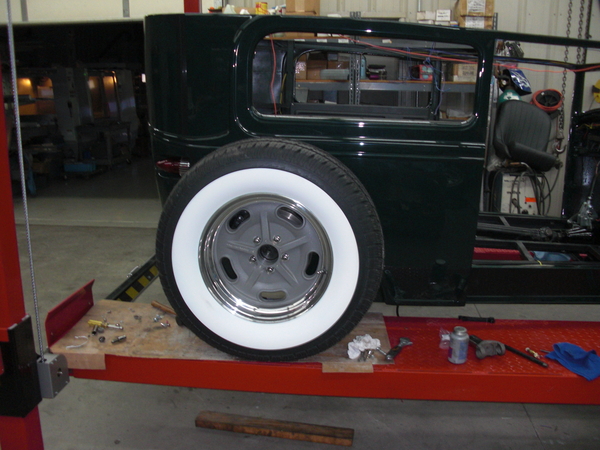

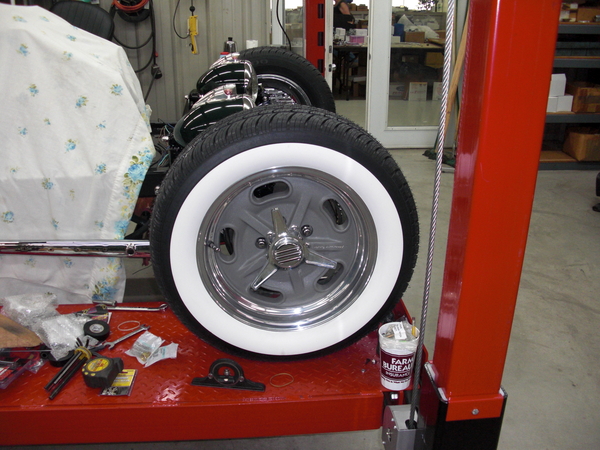

Wheels and tires (American racing salt flats/Diamond Tires)
)
)

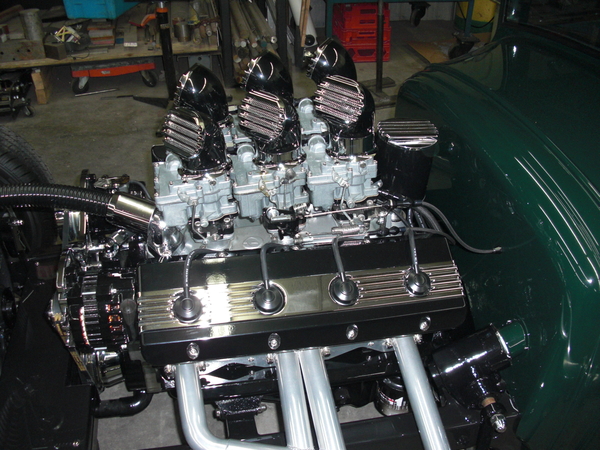

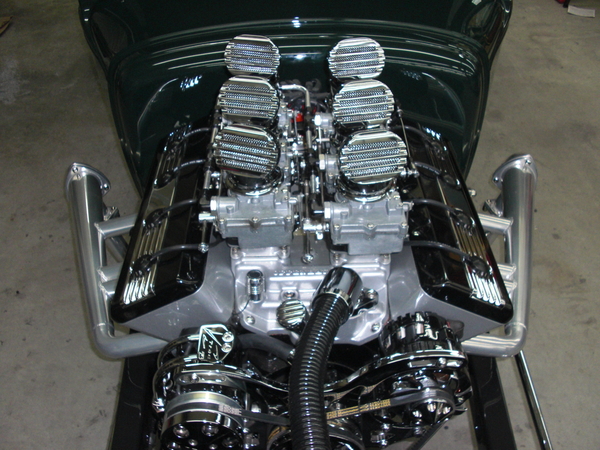

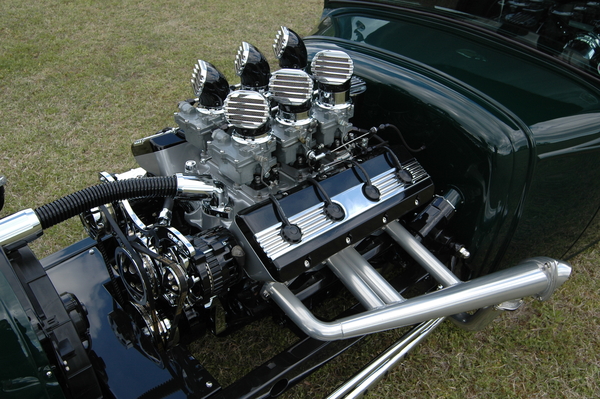

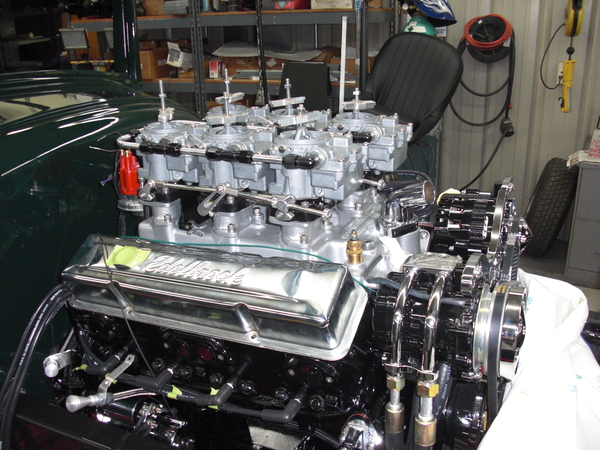

Assembly of 6 deuces
)
Assembly
)

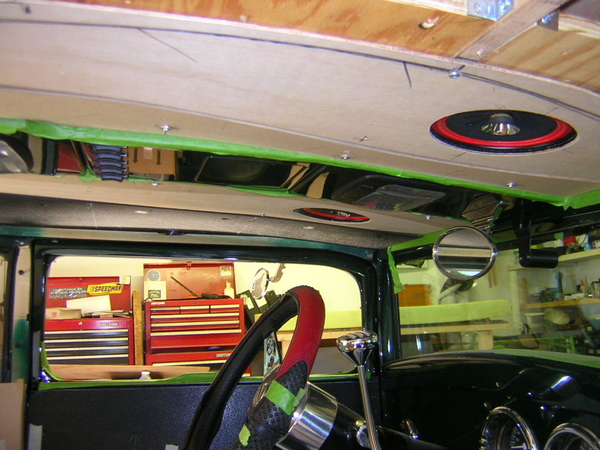

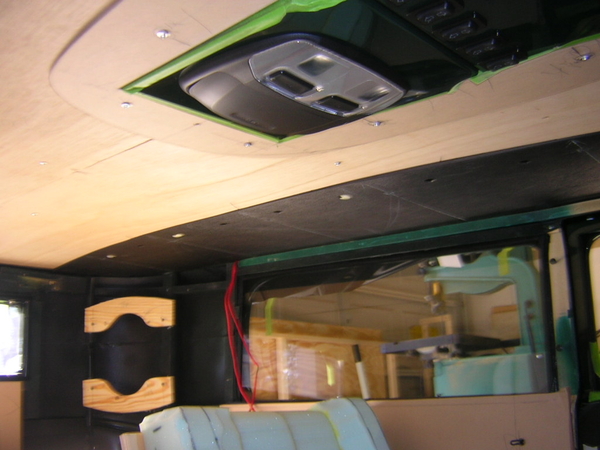

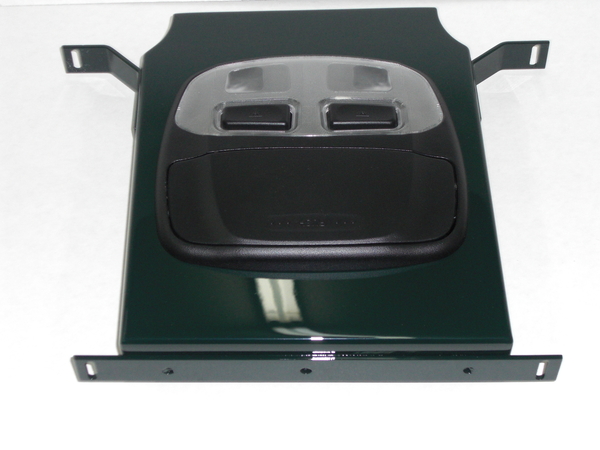

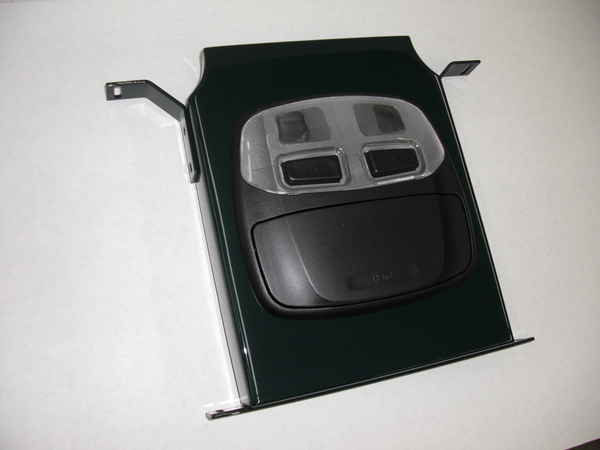

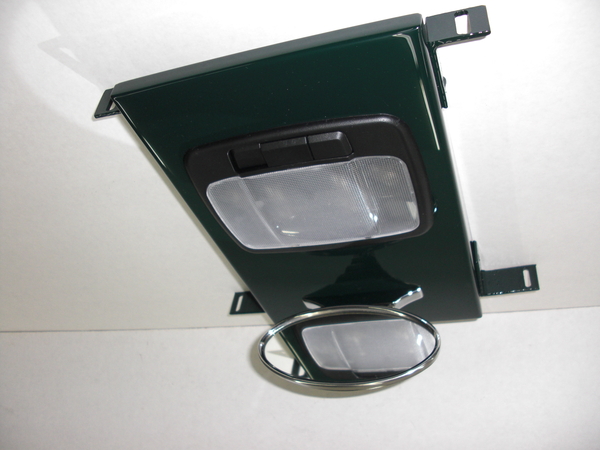

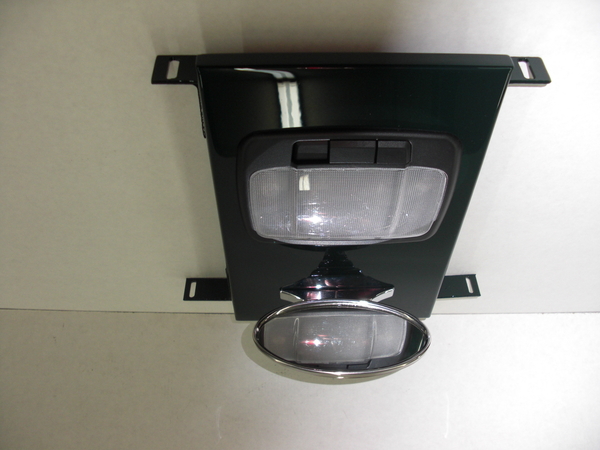

Overhead console
)
)
)
)

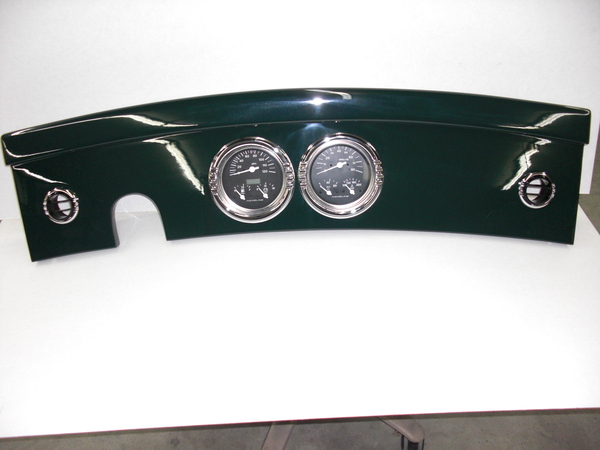

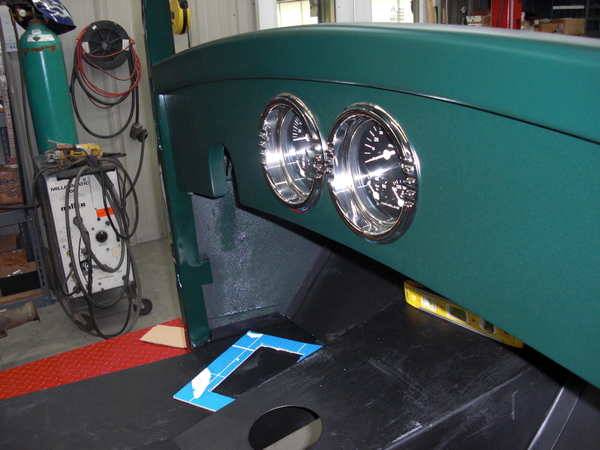

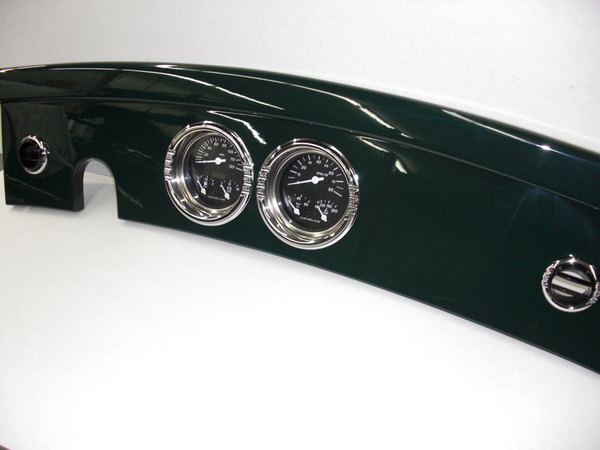

Dash
)
)

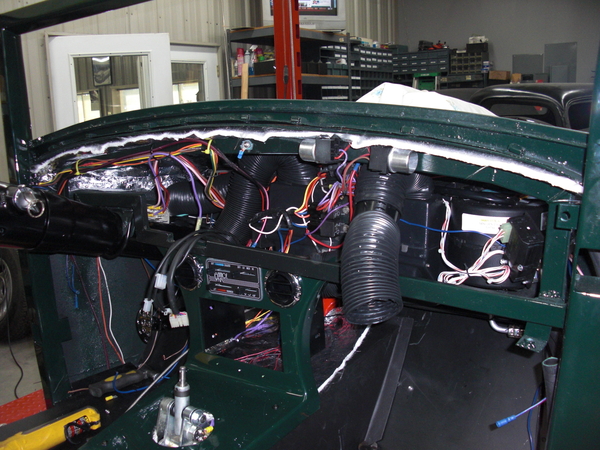

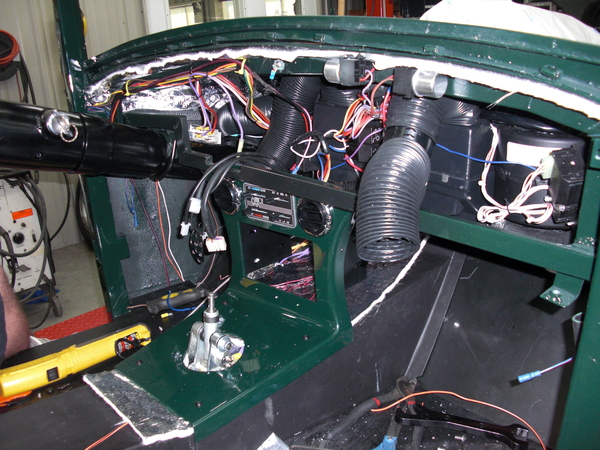

Wiring and air conditioning
)
)

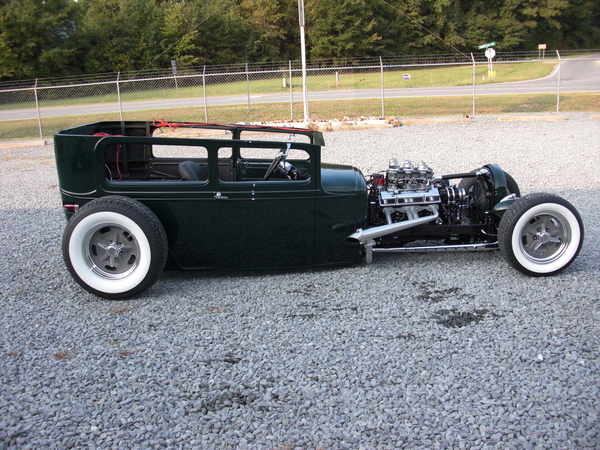

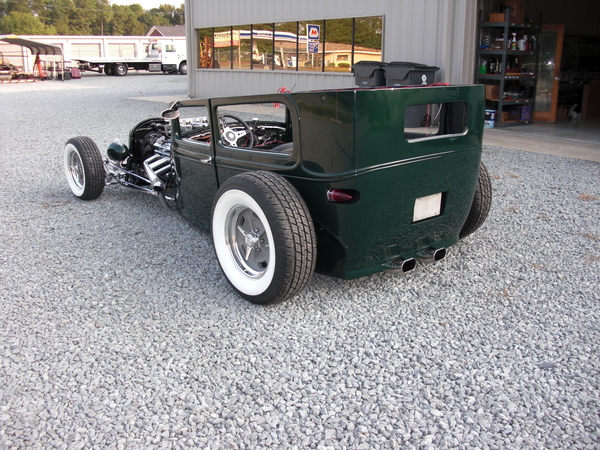

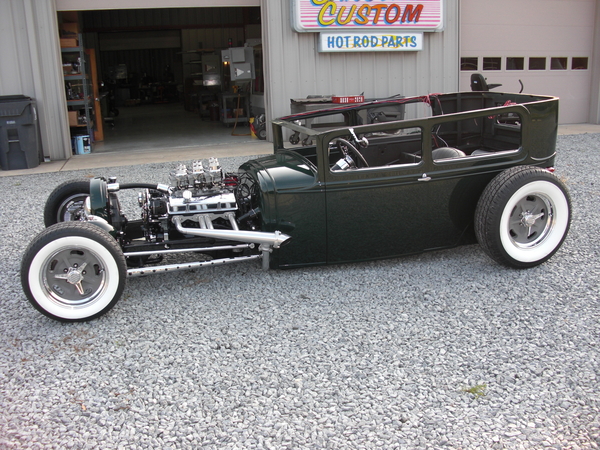

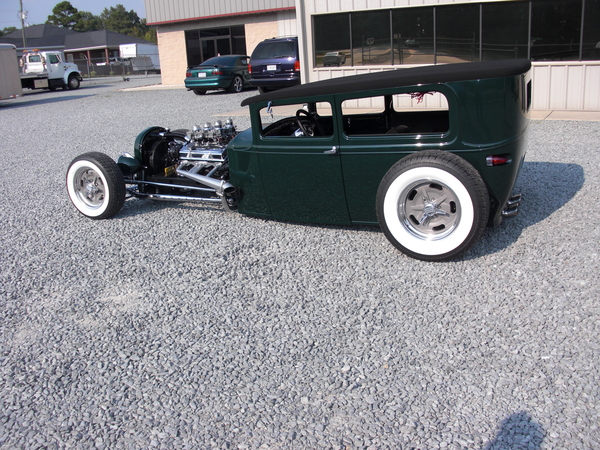

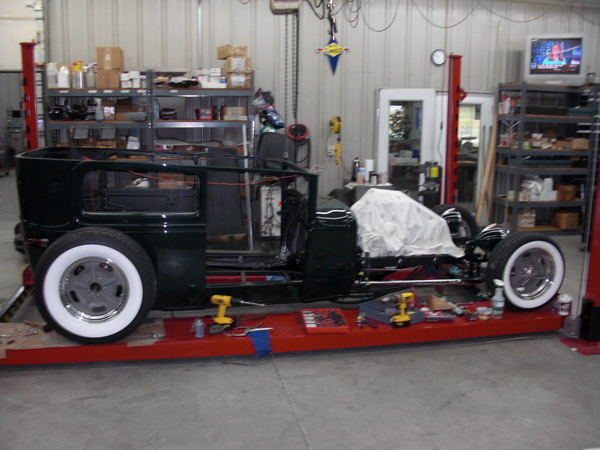

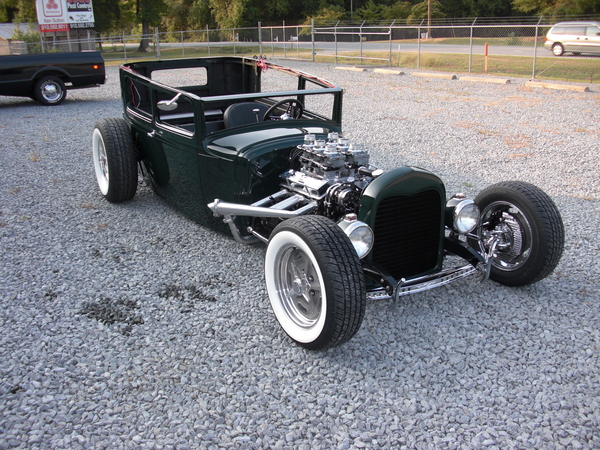

Car assembly
)
)
)
)
)
)
)
)
)
)
)

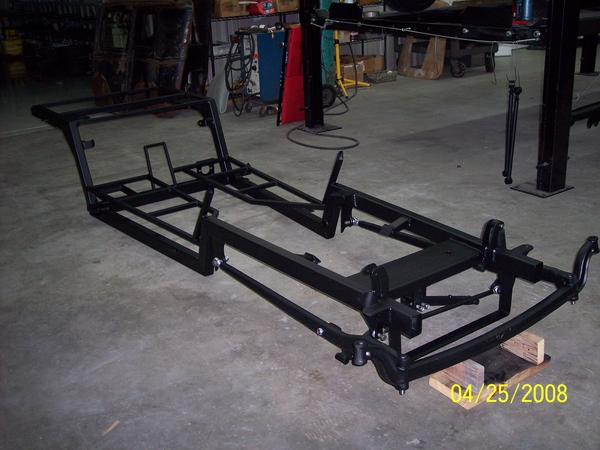

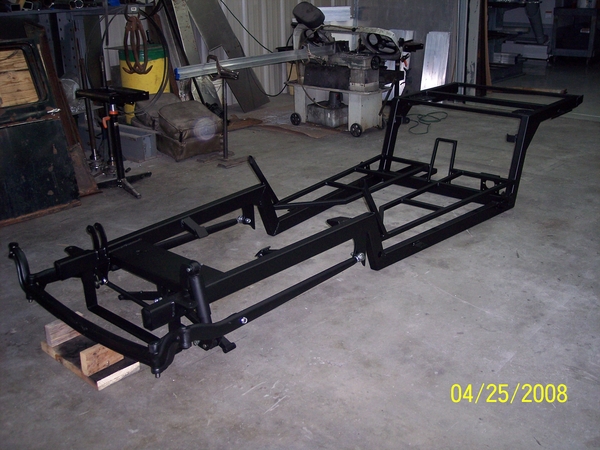

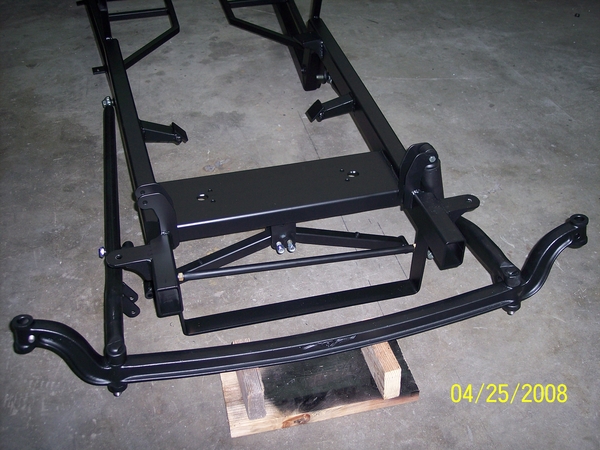

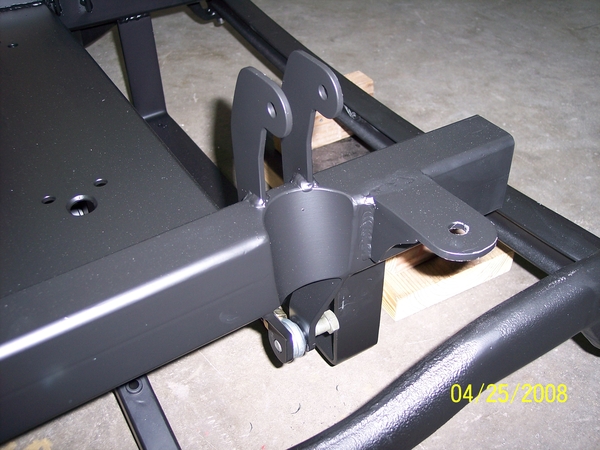

Chassis
)
)
)
)
Engine
)
)

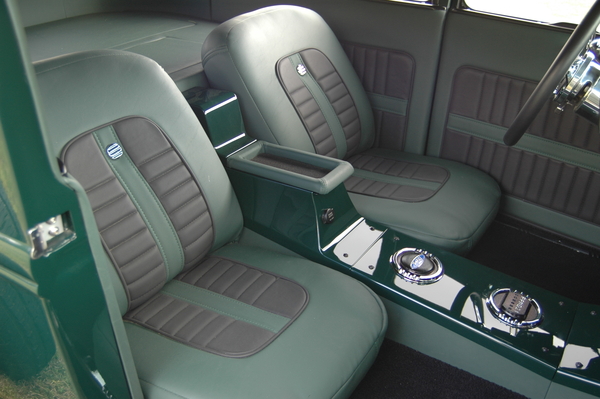

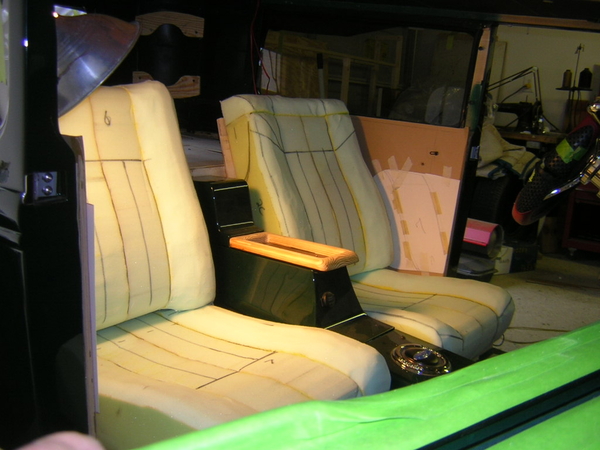

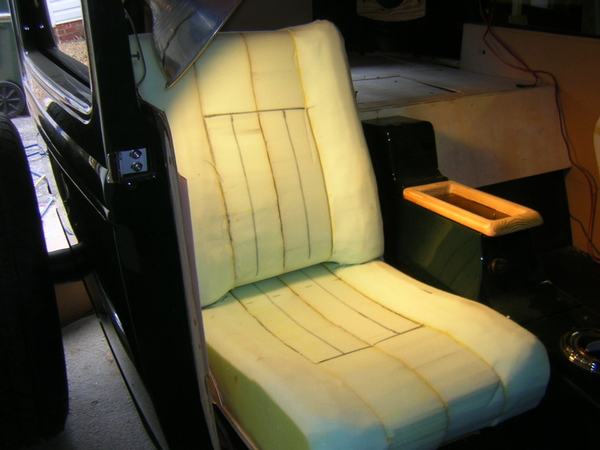

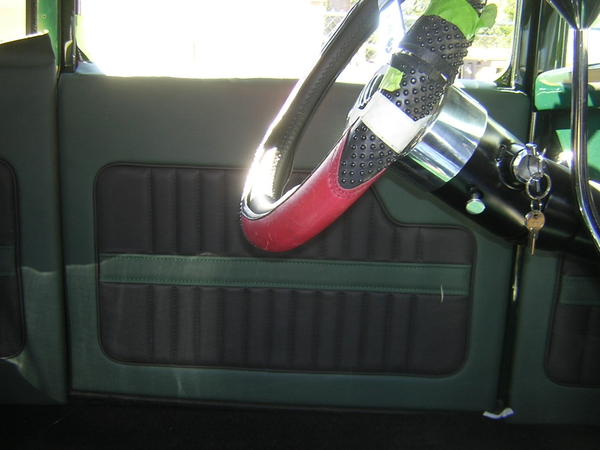

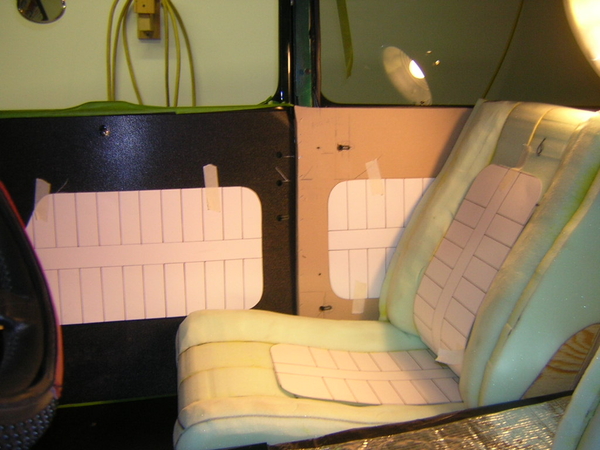

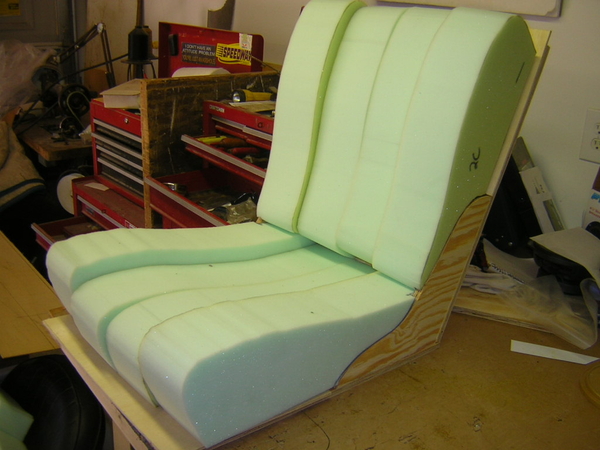

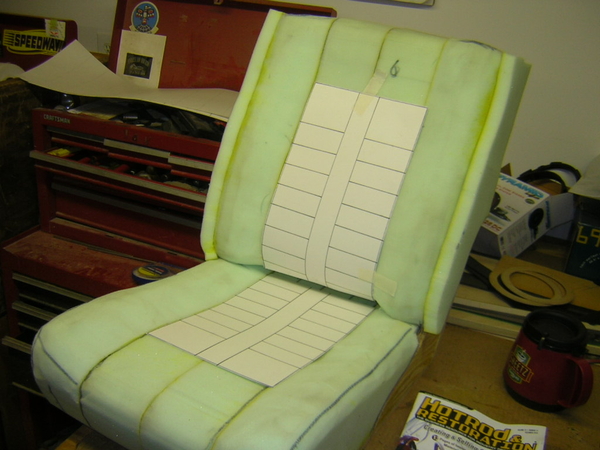

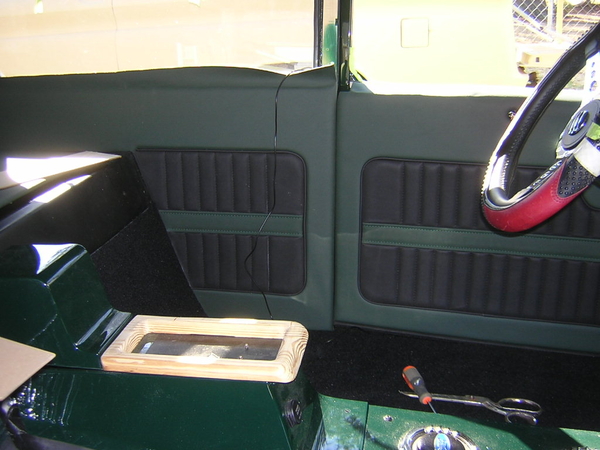

Upholstery
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
